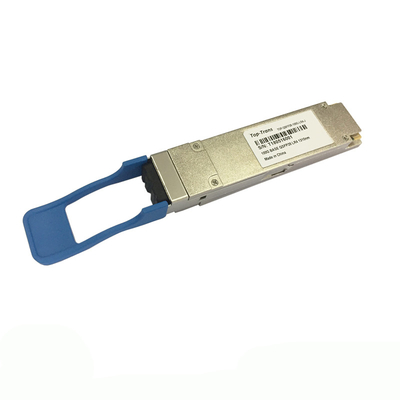

100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver

100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver
100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver 100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver

Large Image :  100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TQSFP28-100G-LH4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per Day

100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver

Description
Form-Factor: TQSFP28-100G-LH4 Data Rate: 100G
Center Wavelength: LWDM4 Transmission Distance: 20KM
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.06KG Per Piece Warranty: 3 Years
Product Name: TQSFP28-100G-LH4
Highlight:

20KM LH4 100G QSFP28 Module

,

100gbps Gigabit Ethernet Transceiver

,

LH4 Gigabit Ethernet Transceiver

QSFP28 Optical Transceivers 100GBASE Ethernet LWDM4 20KM LH4 for Data Center

QSFP28 Optical Transceivers

Feature of TQSFP28-100G-LH4

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de- multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

TQSFP28-100G-LH4

The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 20km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.



Parameters

Fiber Type Single-mode Cable
Connector LC
Lasers and TIA EML and PIN
Tx Power -4.3 to 4.5 dBm
Rx Sensitivity -10.6 to 4.5 dBm
Extinction Ratio 4.0 dB
Power Consumption 4.0 W
Single Power Supply 3.3 V







100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver 0

100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver 1100G QSFP28 Module 100gbps Gigabit TQSFP28-100G-LH4 Ethernet transceiver 2

PRODUCT FEATURES OF TQSFP28-100G-LH4

  •  Hot pluggable QSFP28 MSA form factor
  •  Compliant to IEEE 802.3ba 100GBASE-LR4
  •  Up to 20km reach for G.652 SMF
  •  Single +3.3V power supply
  •  Operating case temperature: 0~70oC
  •  Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
  •  Receiver: 4x25Gb/s PIN ROSA
  •  4x28G Electrical Serial Interface (CEI-28G-VSR)
  •  Maximum power consumption 4.0W
  •  Duplex LC receptacle





APPLICATIONS OF TQSFP28-100G-LH4

  •  100GBASE-LR4 Ethernet Links
  •  Infiniband QDR and DDR interconnects
  •  Client-side 100G Telecom connections



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
