Product Details:
|
| Center Wavelength: | 1560.61nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Transmission Distance: | 40km | Weight: | 0.03KG Per Piece |
| Protocol: | IEEE 802.3ae | Warranty: | 1 Year |
| Pull Color: | Blue | ||
| Highlight: | 40km SFP+10G ER,DWDM SFP+10G ER,1560.61nm Original SFP Module |
||
DWDM SFP+10G ER 40km Original SFP Module AOI A7ELXD21EDMA0609 CH21 1560.61nm C-Band Optical Transceiver
AOI's A7ELXD21EDMA0609 Original SFP Module's Overview
This SFP+ ER DWDM Original SFP Module transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
SFP+ Type DWDM Dual LC Transceiver
EML Laser
PIN Photo Detector
40Km transmission with SMF
3.3V dual power supply
Supply current 350mA (typical)
Compliant with SFP+MSA
Compliant with IEEE 802.3ae
Hot pluggable
Serial ID information support
Digital diagnostic functions
Compliant with RoHS
Compliant with UL & TUV
Applications
10 Gigabit Ethernet (10.3125Gbps)
10 Gigabit Fiber Channel (10.51875Gbps)
Parameters for the AOI Original SFP Module Optical Transceiver:
| Fiber Type | OS2 single-mode fiber |
| Connector | LC duplex connector |
| Transmit and Receive Wavelength (nm) | 1550nm |
| Pull Tab Color | blue |
| Tx power | -1 to 3dBm |
| Rx sensitivity | -14.1dBm |
| Power Consumption | 1.5W |
| Dimensions | (H x W x D)13.5 x 18.4 x 72.4 mm |

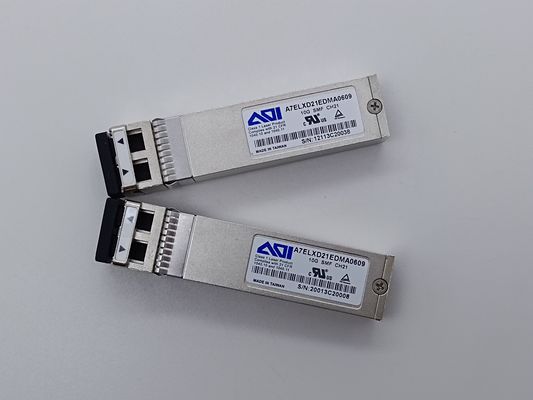

Photo for AOI A7ELXD21EDMA0609 Original SFP Module Transceiver
FAQ
Q1. Are your transceiver modules compatible with any brand?
A1:Yes, All the brand Topstar's SFP compatible as the following:Nortel,Juniper,Alcatel-lucent,FOUNDRY,
EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, D-Link, Feixun...etc
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock ,ready to ship. some of higher-value and specialize optics have a short lead time.
Payment term: Western union, T/T, Aliexpress escow, money gram ,cash payment
Warranty: 3 years
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
