Product Details:
|
| Data Rate: | 10Gb/s | Form-Factor: | SFP |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 400m |
| Temperature: | -5°C To 85°C | Connector: | Duplex LC |
| Lasers: | VCSEL | DDM: | Yes |
| Highlight: | Dell Transceiver SFP+ 10GbE SR 850nm,850nm 300m sfp+ 10gbe transceiver,300m Duplex LC sfp+ 10gbe transceiver |
||

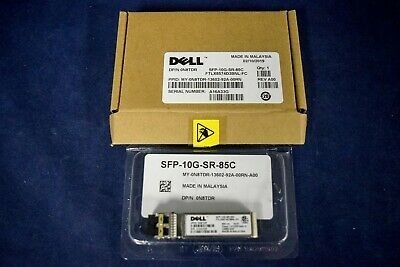

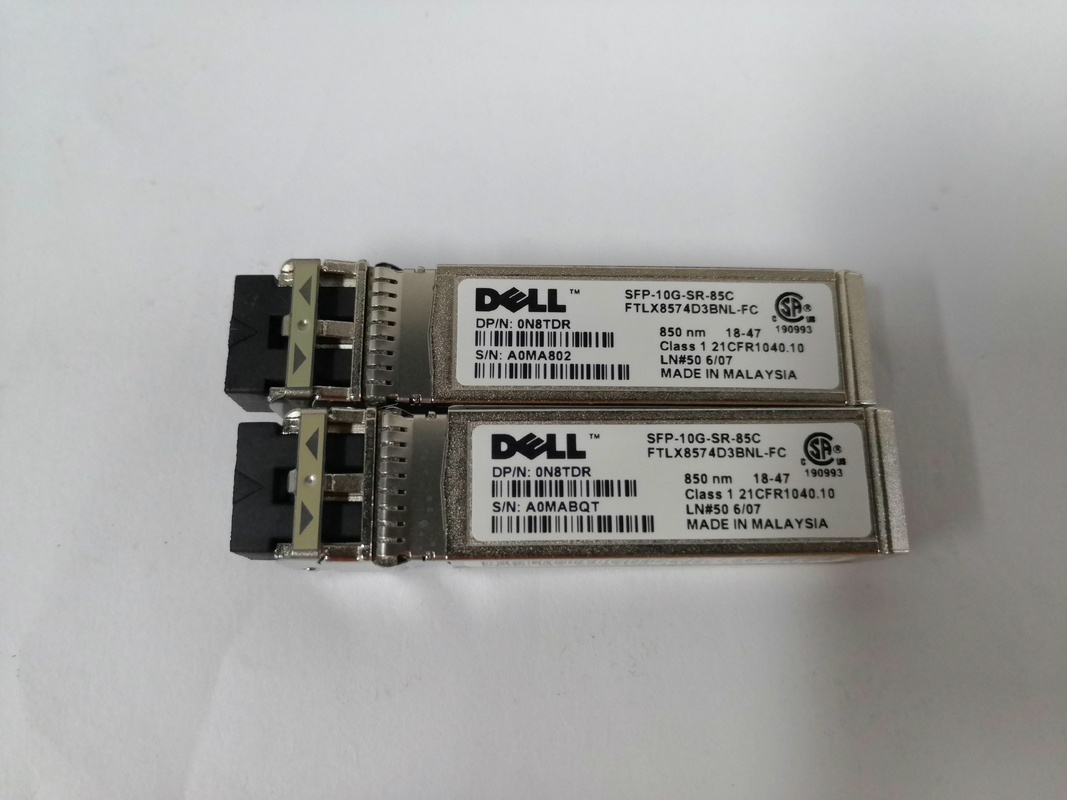

Dell SFP+ 10GbE SR 850nm 300m 0N8TDR Optical Module Transceiver
| Fiber Type | Single mode |
| Weight | 0.03kg |
| Warranty | 1 year |
| Tx power | -5.0 to -1.0 dBm |
| Rx sensitivity |
-7.5 to +0.5 dBm |
| Extinction Ratio | 3.0 dB |
| Power Consumption | 3.3W |
| Applications | 10G Ethernet |
0N8TDR optical mudule Features
APPLICATIONS
0N8TDR description
The Dell™ SFP+ transceiver delivers fiber connectivity to extend the range of your network.
This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector.
The Dell networking 10GBaseSR SFP+ transceiver provides 10GbE connectivity up to 300 m .
Additionally, it provides a unique enhanced digital diagnostic monitoring interface,
which allows real-time access to device operating parameters such as transceiver temperature,
laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
