Product Details:
|
| Data Rate: | 40Gb/s | Form-Factor: | QSFP |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 2km |
| Temperature: | 0°C To 70°C | Connector: | LC Duplex |
| Lasers: | DFB | DDM: | Yes |
| High Light: | Innolight IR4 40G QSFP+ Transceiver,single mode 1310nm TR-QQ13T-N00,TR-QQ13T-N00 40G QSFP+ Transceiver |
||

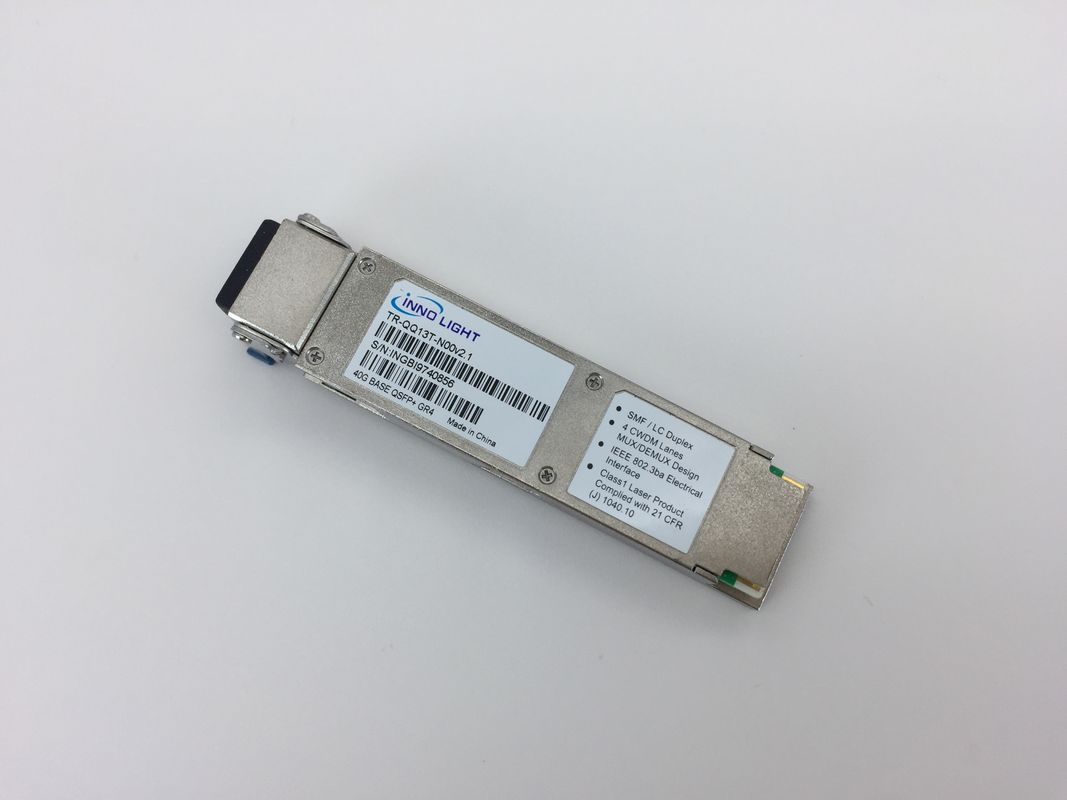

Innolight 40Gb/s QSFP+ IR4 Optical Transceiver Module TR-QQ13T-N00
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 year |
| Tx power | -2.0 to +2.0dBm |
| Rx sensitivity |
-2.0 to +2.0 dBm |
| Extinction Ratio | 3.5 dB |
| Power Consumption | 3.5W |
| Applications | 40G Ethernet |
TR-QQ13T-N00 optical mudule Features
APPLICATIONS
TR-IQ13C-N00 description
This product is a transceiver module designed for 2km optical communication applications.
The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard.
The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission.
Reversely, on the receiver side, the module optically demultiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
This product converts the 4-channel 10Gb/s electrical input data into CWDM optical signals (light), by a driven 4-wavelength Distributed Feedback Laser (DFB) array.
The light is combined by the MUX parts as a 40Gb/s data, propagating out of the transmitter module from the SMF.
The receiver module accepts the 40Gb/s CWDM optical signals input, and de-multiplexes it into 4 individual 10Gb/s channels with different wavelength.
Each wavelength light is collected by a discrete photo diode, and then outputted as electric data after amplified by a TIA and a post amplifier.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
