Product Details:
|
| Form Factor: | QSFP28 | Rate: | 100G |
|---|---|---|---|
| Wavelength: | CWDM | Temperature: | 0-70°C |
| Cable Type: | SMF | Reach: | 10km |
| Maximum Power Consumption: | < 3.5W | Connector: | MPO |
| Transceiver Type: | SR4 | DOM: | Support |
| Highlight: | 3.5W QSFP 100G LR4 C,CWDM QSFP 100G LR4 C,10KM Transceiver 100G LR4 |
||

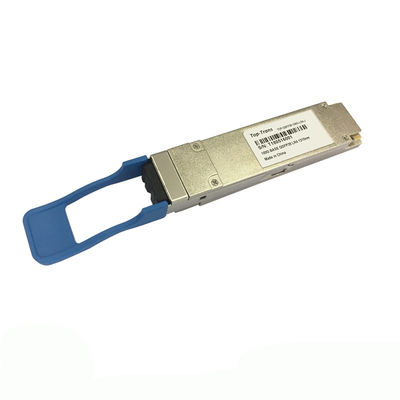

Compatible Juniper JNP-QSFP-100G-CWDM 100G CWDM4 Optics SMF 2km Optical Module
Part Number 740-061409
Speed100 Gigabit Ethernet
Breakout Capable No
Transceiver TypeQSFP28
Product TypeOptical Transceiver
ConnectorDuplex LC
Monitoring AvailableYes
Digital Optical MonitoringYes
Standard: 100GBASE-LR4
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4)IEEE 802.3ba-2010
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter wavelengths (range)
1294.53 nm through 1296.59 nm
1299.02 nm through 1301.09 nm
1303.54 nm through 1305.63 nm
1308.09 nm through 1310.19 nm
Transmitter output power, each lane (minimum)–4.3 dBm
Transmitter output power, each lane (maximum)4.5 dBm
Receiver input power, each lane (minimum)–10.6 dBm
Receiver input power, each lane (maximum)4.5 dBm
Cable typeSMFCore size/cladding9/125 µm
Distance10 km
Maximum Power consumption (W)3.5 W
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
