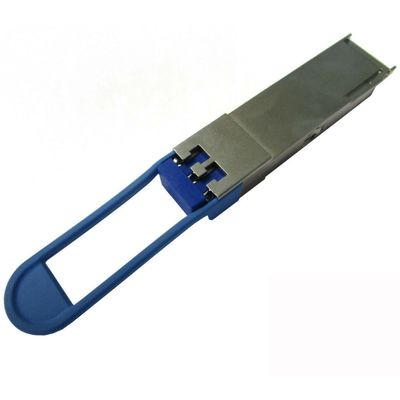

Duplex LC QSFP28 100G-FR / 100GBASE-FR1 SMF 2km Fiber Optical Transceiver

QSFP28 100G-FR/100GBASE-FR1 Duplex LC connector SMF 2 km Fiber Optical Transceiver

Part Number 740-088320

Speed 100 Gigabit Ethernet

Breakout Capable No

Transceiver Type QSFP28

Product Type Optical Transceiver

Connector Duplex LC

Monitoring Available Yes

Digital Optical MonitoringYes

Additional InformationThese transceivers interoperate with the QDD-4X100G breakout optics. For example, the QDD-4X100G-FR interconnects with four QSFP-100G-FR transceivers. The QSFP-100G-FR transceivers interconnect in single links (QSFP-100G-FR to QSFP-100G-FR or to QSFP-100G-DR) and interoperate at the shortest link length. The QSFP-100G-FR transceivers are not compatible with earlier-generation 100-Gbps transceivers (for example, QSFP-100G-CWDM4 and QSFP-100G-LR4).Standard: 100G Lambda MSA, 100G-FR IEEE P802.3cu, 100GBASE-FR1MSA compliance (SFF, for e.g. SFF-8665)SFF-8665Digital Diagnostic Monitoring

Transceiver Temperature

Transceiver Supply Voltage

Tx Bias Current

Tx output power

Rx received optical power

Supported applications100G-FR or 100GBASE-FR1 (clause 140), CAUI-4 (no FEC)Signaling rate, each lane

Host lane: NRZ; 25.78125 GBd ± 100 ppm

Media lane: PAM4; 53.125 GBd ± 100 ppm

Transmitter fibers1Transmitter wavelengths (range)1304.5 nm to 1317.5 nmReceive lane wavelengths (range)1304.5 nm to 1317.5 nmTransmitter output power, each lane (minimum)-2.4 dBmTransmitter output power, each lane (maximum)4 dBmTransmitter and dispersion eye closure for PAM4 (TDECQ), each lane (maximum)3.4 dBReceiver input power, each lane (minimum)-7.1 dBmReceiver input power, each lane (maximum)4.5 dBmReceiver sensitivity (OMA), each lane (maximum)

For TECQ < 1.4 dB: -4.5 dBm

For 1.4 dB ≤ TECQ ≤ 3.4 dB: -5.9 + TECQ dBm

Stressed receiver sensitivity (OMA) each lane (maximum)-2.5 dBmCable typeSMFCore size/cladding9/125 µmFiber gradeIEEE Clause 140.10.1: IEC 60793-2-50 type B1.1, type B1.3, or type B6_a or requirements in IEEE Table 140–13 where they differ.Distance2 kmMaximum Power consumption (W)4.0 WOperating Temperature (range)0° C to 70° CStorage temperature–40° C to 85° CTypical Weight & Dimensions

Weight: 0.2 kg

Height: 13.5 mm

Width: 18.35 mm

Depth: 73.4 mm
