Product Details:
|
| Center Wavelength: | 1271~1331nm | Temperature: | 10°C~+60°C |
|---|---|---|---|
| Form Factor: | QSFP28 100G | Weight: | 0.05KG/PCS |
| Protocol: | IEEE 802.3bm QSFP28 MSA | Core Size: | G.652 |
| Highlight: | 100GBASE CWDM4 Lite,2km QSFP 100G SM SR,SMF QSFP 100G SM SR |
||
100GBASE CWDM4 Lite QSFP Transceiver 2km Over SMF 10-60°C Cisco QSFP-100G-SM-SR 10-3220-01
Cisco QSFP-100G-SM-SR Transceiver's Overview
QSFP28-100G Optical modules provide these highlights:
•Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port
•Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
•Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability
•High-speed electrical interface compliant to IEEE 802.3bm
Parameters for the Cisco QSFP28 100G Optical Transceiver:
| Fiber Type | OS2 single-mode fiber |
| Connector | LC |
| Transmit and Receive Wavelength (nm) | 1271, 1291, 1311, 1331nm |
|
Description |
Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C |
| Pull Tab Color | Green |
| Lasers and TIA | DFB and PIN |
| Tx Power | -6.5 to 2.5 dBm |
| Rx Sensitivity | -11.5 to 2.5 dBm |
| Extinction Ratio | 2.0 dB |
| Power Consumption | 3.5W |
| Single Power Supply | 3.3 V |
| Dimensions | (H x W x D)13.5 x 18.4 x 72.4 mm |
The QSFP28 SM-SR is for “Single-Mode fiber Short Reach” applications and is also known as “CWDM4-Lite”. A variant of CWMD4-S, its operating temperature range is +10 to +60°C instead of the standard commercial temperature range of 0 to 70°C.
Like CWDM4-S, SM-SR supports 100G link lengths of up to 2km over duplex G.651 SMF and accepts duplex LC connectors.
However, its optical link loss budget is 4.2 dB instead of 5.0 dB as specified by the CWDM4 MSA. At 4.2 dB, the link budget offers the ability to support the optical loss from patch panels in a data center environment. SM-SR is interoperable with CWDM4-S.

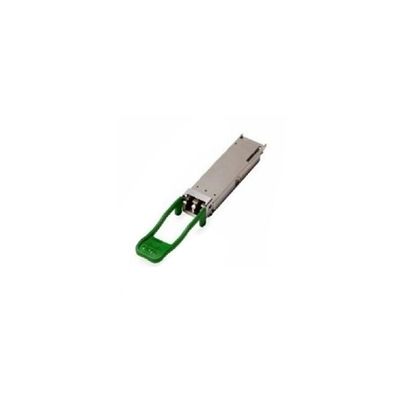

Photo for Cisco QSFP28 100G QSFP-100G-SM-SR Transceiver
FAQ
Q1. Except for this Cisco QSFP28 QSFP-100G-CWDM4-S optical modules, what else Cisco sfp can you offer?
A1: Topstar can offer Cisco optical module from 1G SFP, 10G SFP+, 16G/32G FC SFP+, 25G SFP28, 40G QSFP+ to 100G QSFP28, etc....
Q2. How do you guarantee the Cisco QSFP28 100G optical transceiver you offer is genuine?
A2: 1st, Topstar's target is to be a respected century-enterprise, based on this, we only sell 100% genuine brand transceiver because reputation worths more;
2nd, Topstar works on this optical transceiver field for 16 years, we have our mature supply chain, all the Cisco cooperators is verfied;
3rd, we have our strict procedure for how to verify the identify true and false of the Cisco transceiver by label,appearance,serial number checking, and also test equipment;
4th, if you found any faked or copied Cisco optical module from us, we will refund and afford all the freight for ship and return;
Q3. How does your company do regarding quality control for this Cisco QSFP28 100G optical module?
A3: Every single optic individually tested in our test center to make sure it can work befor shipment;
