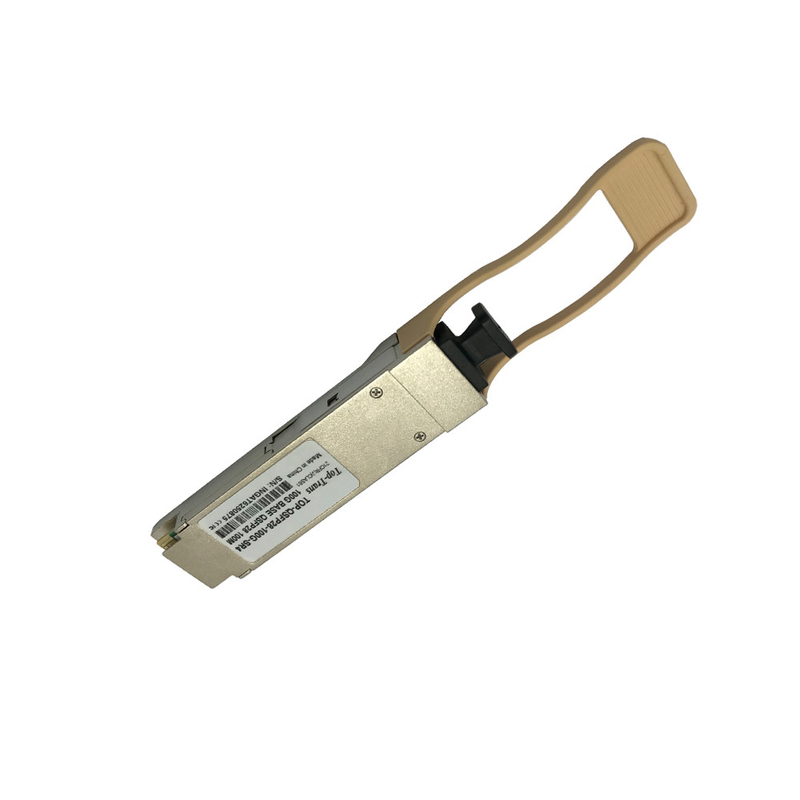

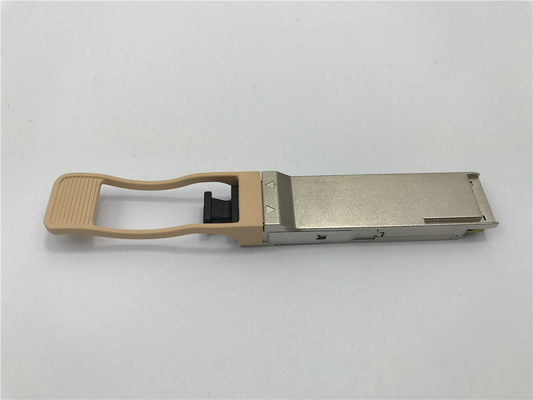

Arista XVR-00067-01 QSFP-100G-SR4 Compatible QSFP28 Module MMF MTP/MPO-12

Cloud migration enables small and medium enterprise deploying the application in the hyperscale datacenter for flexible computing and storage force, optimized operation efficiency, low CAPEX/OPEX operation and easy maintenance. SDN technology improves network virtualization and upgrades Cloud ISP service from virtual machine base into Serverless base with more SAAS application. To accelerate Cloud migration, the next generation Data Center exists the huge demand on the network capacity to offer high bandwidth and reduced latency for better network efficiency. Many data center have widely configured 100Gigabit network from server to leaf/spine/core.

Top-Trans QSFP28 100G Module is designed for 100GBASE and Infiniband archictecture. This QSFP28 module uses 850nm VCSEL transmitter and PIN receiver to create the 100Gigabit connection via the fiber link over up to 70M in OM3 MMF and 100M in OM4 MMF. This QSFP28 module features the MTP/MPO-12 connector which can interoperate with other MSA compliant QSFP28 module by direct connect or MSA SFP28 module by MTP/MPO to LC Duplex breakout cables. This QSFP28 module is fully MSA compliant and features the online DOM/DDM to monitor the operation status. This QSFP28 module can be programmed with the compatibility to interoperate with Arista Network QSFP28 ports.

• 4 independent full-duplex channels

• Up to 25Gb/s data rate per channel

• QSFP28 MSA compliant

• Compliant to IEEE 802.3bm 100GBASE-SR4

• Up to 100m OM4 MMF transmission

• Operating case temperature: 0 to 70oC

• Single 3.3V power supply

• Maximum power consumption 3.5W

• MTP/MPO optical connector

• RoHS-6 compliant

​Compatible platform

Arista 7050X3, 7050X4, 7358X4, 7060X, 7260X, 7130, 7170, 7280R, 7280R3, 7300X, 7388X5, 7368X4, 7500R, 7500R3, 7800R3

Parameters

FAQ

• Can I use your QSFP28 module with Arista original QSFP-100G-SR4 optics?

       Yes, It can interoperate with Arista optics

• What's your optic warranty terms?

​         3 Years, 1 Year free Replacement, 3 Years free repairment for non-human made hardware defects

• What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

Our optics is produced using fresh new components through the strict QC control over parameter and performance test through error detector and eye diagram. The qualification ratio is over 99.9%. If any quality defects happen within the warranty, we will arrange the replace/repair service immediately
