Dual Fiber 100G QSFP28 Module CFP2 100GBase-ZR LWDM4 80KM

100G SFP Module CFP2 100GBase-ZR LWDM4 80KM Dual Fiber Sfp Module

100G SFP Module Dual Fiber Sfp Module

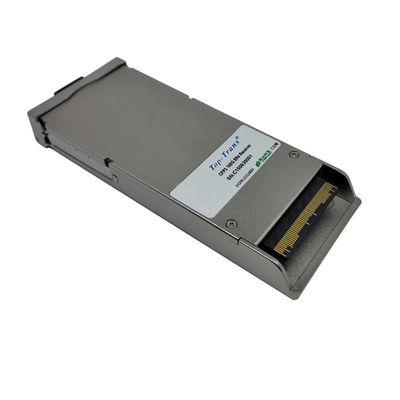

Topstar TCFP2-100G-ZR4, The 100G CFP2 ZR4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a APD photo detector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.

Parameters

PRODUCT FEATURES

•  Supports up to 112Gbps bit rates
•  Duplex LC connector
•  Hot pluggable
•  Operating electrical serial data rate up to 27.952493Gbps
•  APD ROSA
•  4 parallel electrical serial interface
•  Applicable for 80km SMF connection
•  Low power consumption, < 6W
•  Digital Diagnostic Monitor Interfacel
•  MDIO Communication Interface
•  Compliant with 100GBASE-ZR4
•  Operating case temperature: Commerical:0 to 70 °C

APPLICATIONS

•  Local Area Network(LAN)
•  Wide Area Network(WAN)
•  Switch to router interface

Standards

•  Compliant with IEEE 802.3ba
•  Compliant with CFP2 MSA hardware specifications
•  Compliant with CFP2 MSA management specifications
•  Compliant with ITU-T G709/Y.1331
•  Compliant with RoHS

FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.

Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.

Q3. What are the trade terms?

A3: EXW-Shenzhen or FOB-Shenzhen or More you want

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.

Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
