LWDM4 LC 100G QSFP28 Module 100G CFP2 ER4 1310nm 40km CE FCC

LWDM4 LC 100G QSFP28 Module 100G CFP2 ER4 1310nm 40km CE FCC
LWDM4 LC 100G QSFP28 Module 100G CFP2 ER4 1310nm 40km CE FCC LWDM4 LC 100G QSFP28 Module 100G CFP2 ER4 1310nm 40km CE FCC LWDM4 LC 100G QSFP28 Module 100G CFP2 ER4 1310nm 40km CE FCC

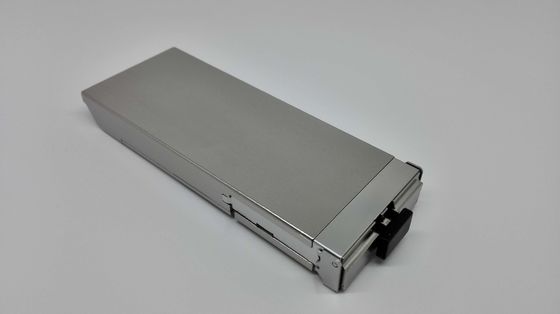

Large Image :  LWDM4 LC 100G QSFP28 Module 100G CFP2 ER4 1310nm 40km CE FCC

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TCFP2-100G-ER4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200pcs per Day

LWDM4 LC 100G QSFP28 Module 100G CFP2 ER4 1310nm 40km CE FCC

Description
Form-Factor: CFP2 Data Rate: 100G
Center Wavelength: 1295.56nm 1300.05nm 1304.58nm 1309.14nm Transmission Distance: 40km On SMF
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.3KG Per Piece Warranty: 3 Years
Highlight:

LWDM4 LC 100G QSFP28 CE FCC

,

LWDM4 LC 100G QSFP28 CFP2 ER4

,

CE FCC 100G CFP2 ER4

100G CFP2 ER4 1310nm 40km LWDM4 LC Network Tools And Equipment

100G CFP2 ER4 Network Tools And Equipment



Parameters

Fiber Type SMF Cable
Connector LC
Lasers and TIA EML+PIN
Data Rate, each Lane 4x25 Gbps
Rx Sensitivity -16 dBm to 4.5 dBm
Tx Transmitter -2.9 dBm to +2.9 dBm
Extinction Ratio 8 dB
Max Power Consumption Less than 12 W
Single Power Supply 3.3 V



Topstar TCFP2-100G-ER4, The 100G CFP2 ER4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photo detector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.



PRODUCT FEATURES

  •  Supports up to 112Gbps bit rates
  •  Duplex LC connector
  •  Hot pluggable
  •  Operating electrical serial data rate up to 27.952493Gbps
  •  APD ROSA
  •  4 parallel electrical serial interface
  •  Applicable for 40km SMF connection
  •  Low power consumption, < 12W
  •  Digital Diagnostic Monitor Interfacel
  •  MDIO Communication Interface
  •  Compliant with 100GBASE-ER4
  •  Operating case temperature: Commerical:0 to 70 °C



APPLICATIONS

  •  Local Area Network(LAN)
  •  Wide Area Network(WAN)
  •  Switch to router interface



Standards

  •  Compliant with IEEE 802.3ba
  •  Compliant with CFP2 MSA hardware specifications
  •  Compliant with CFP2 MSA management specifications
  •  Compliant with ITU-T G709/Y.1331
  •  Compliant with RoHS



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: EXW-Shenzhen or FOB-Shenzhen or More you want

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)



We can supply according to your request.
