Product Details:
|
| Form-Factor: | CFP2 | Data Rate: | 100G |
|---|---|---|---|
| Center Wavelength: | 1295.56nm 1300.05nm 1304.58nm 1309.14nm | Transmission Distance: | 10km On SMF |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.3KG Per Piece | Warranty: | 3 Years |
| Highlight: | 100G Transceiver 1310nm G.652 SMF Fiber,G.652 SMF Fiber CFP2 100G Transceiver,LWDM4 10KM LR4 100G Transceiver |
||

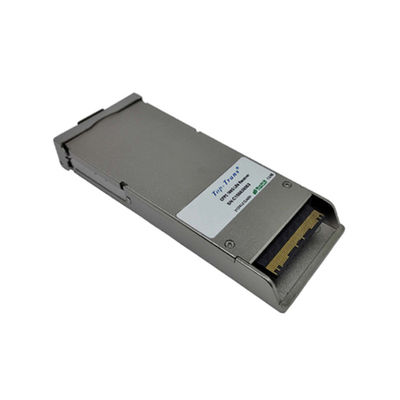

CFP2 100G Transceiver LWDM4 10KM LR4 1310nm Fiber Optic Transmitter
CFP2 100G Transceiver Fiber Optic Transmitter
Topstar's CFP2 transceivers are designed for use in 100 Gigabit Ethernet links over 10km single module fiber, and it compliant to the CFP MSA CFP2 HW Specification and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics are available via MDIO as specified in the CFP MSA Management Interface Specification.
The transceiver's designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications.
The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.
Parameters
| Fiber Type |
G.652 SMF |
| Connector | LC |
| Lasers and TIA | DFB+PIN |
|
Data Rate, each Lane |
4x25 Gbps |
| Rx Sensitivity | <-10.3 dBm |
|
Tx Transmitter |
-4.3 dBm to +4.5dBm |
|
Extinction Ratio |
7 dB |
| Max Power Consumption | Less than 9 W |
| Single Power Supply | 3.3 V |
PRODUCT FEATURES
APPLICATIONS
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: EXW-Shenzhen or FOB-Shenzhen or More you want
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
