Product Details:
|
| Form-Factor: | CFP2 | Data Rate: | 100G |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | OM3-300m OM4-400m |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.3KG Per Piece | Warranty: | 3 Years |
| Highlight: | 100G 850nm 300m CFP2 Module,100G 850nm 300m CFP2 MPO Connector,300m CFP2 Module MPO Connector |
||

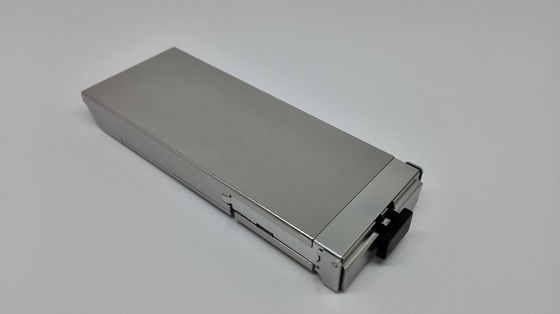

CFP2 Transceiver 100G 850nm 300m MPO Connector Fast Ethernet SFP Module
CFP2 Transceiver Fast Ethernet SFP Module
The CFP2 optical transceiver module are a high performance, low power consumption, short reachinterconnect solution supporting 100G Ethernet and Telecom. It is compliant with the CFP2 MSA and IEEE P802.3ba 100GBASE-SR10. Topstar CFP2 SR10 modules offer 10 transmit and 10 receive asynchronous channels operating at up to 11.18Gbps per channel.
Parameters
| Fiber Type | Multi-mode MPO Cable |
| Connector | MPO |
| Lasers and TIA | Vcsel+PIN |
|
Data Rate, each Lane |
11.18 Gbps |
| Rx Sensitivity | -12 dBm to 9.9 dBm |
|
Tx Transmitter |
-7.6 dBm to +2.4dBm |
|
Extinction Ratio |
3 dB |
| Max Power Consumption | Less than 12 W |
| Single Power Supply | 3.3 V |
PRODUCT FEATURES
APPLICATIONS
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: EXW-Shenzhen or FOB-Shenzhen or More you want
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
