Product Details:
|
| Data Rate: | 40Gb/s | Form-Factor: | QSFP |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 10km |
| Temperature: | 0°C To 70°C | Connector: | MPO |
| Single Power Supply: | 3.3V | DDM: | Yes |
| High Light: | TR-IQ13L-N00 40G QSFP+ LR4,40G QSFP+ LR4 Transceiver Module 10km,LR4 Parallel qsfp+ transceiver module |
||

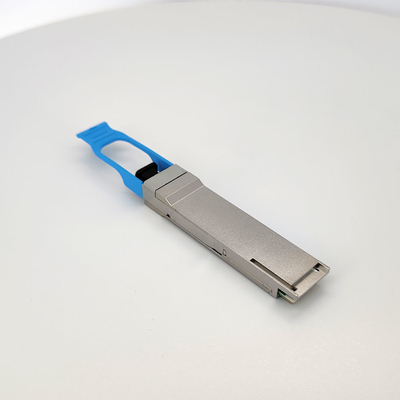

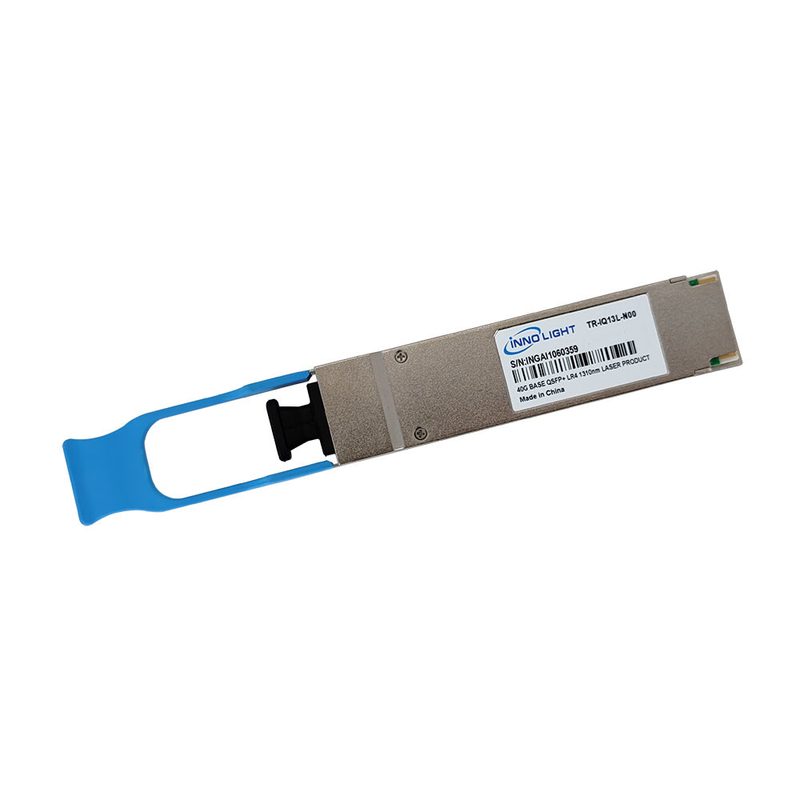

40Gb/s QSFP+ LR4 Parallel Single Mode Optical Transceiver Module TR-IQ13L-N00
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 year |
| Tx power | -5.5 to +7.5dBm |
| Rx sensitivity |
-12.6 to +2.5 dBm |
| Extinction Ratio | 3.5 dB |
| Power Consumption | 3.5W |
| Applications | 40G Ethernet |
TR-IQ13L-N00 optical mudule Features
APPLICATIONS
TR-IQ13L-N00 description
This product is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module.
It provides increased port density and total system cost savings.
The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gb/s operation for an aggregate data rate of 40Gb/s on 10km of single mode fiber.
This product is a QSFP+ parallel single mode optical transceiver with an MTP/MPO fiber ribbon connector.
The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels.
All input data signals are differential and internally terminated.
The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals.
The receiver module outputs electrical signals are also voltage compatible with Common Mode Logic (CML) levels. All data signals are differential and support a data rates up to 10.3Gb/s per channel.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
