Product Details:
|
| Data Rate: | 100Gb/s | Form-Factor: | QSFP |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 100m |
| Temperature: | 0°C To 70°C | Connector: | MTP/MPO |
| Lasers: | VCSEL | DDM: | Yes |
| High Light: | 100GBASE-SR4 Original SFP Module,Innolight 100G QSFP28 SR4,100G QSFP28 SR4 TR-FC85S-N00 |
||

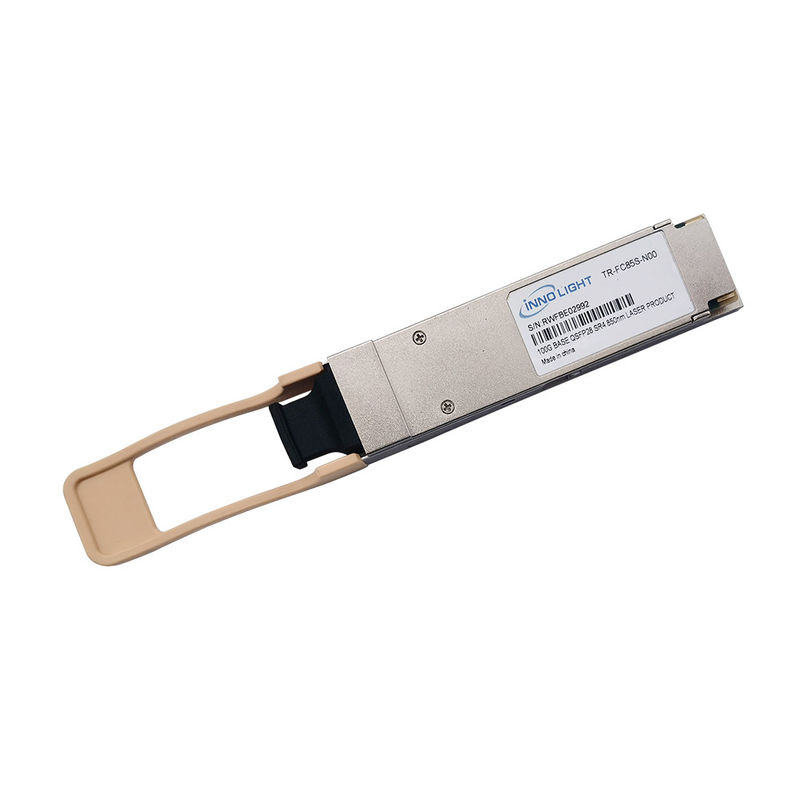

Innolight 100Gb/s QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 year |
| Tx power | -2.4 to +8.4dBm |
| Rx sensitivity |
-3.0 to +9.2 dBm |
| Extinction Ratio | 2.0 dB |
| Power Consumption | 2.5W |
| Applications | Data Center |
TR-FC85S-N00 Features
APPLICATIONS
TR-FC85S-N00 description
This product is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module.
It provides increased port density and total system cost savings.
The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.
This product converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array.
The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
