Juniper JNP-QSFP-4X10GE-IR Compatible 40GbE Transceiver QSFP+ MPO/MTP 1.4KM SMF

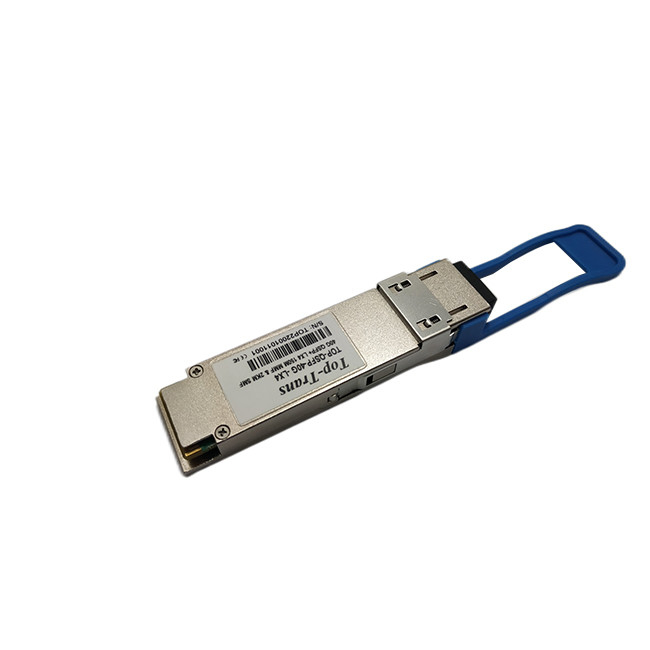

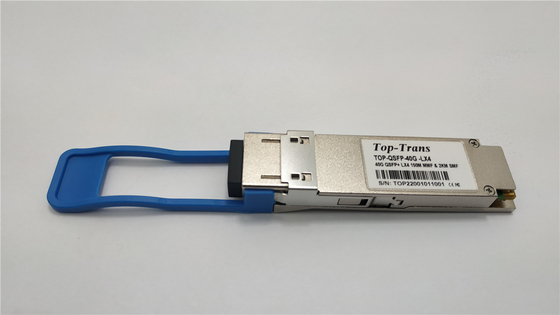

Top-Trans QSFP+-40G-IR4 is a Juniper JNP-QSFP-4X10GE-IR Compatible QSFP+ Optical Transceiver, of excellent interoperation on Juniper EX4300, EX4600, EX9250, QFX5120 and QFX10002 Switches. This IR4 module provides high-speed Layer 2 and Layer 3 aggregation for data centers, HPC centers, enterprise core and distribution etc applications. This PLR4 module is fully compliant with the QSFP+ MSA and IEEE 802.3ae standards.

The 40G QSFP+ IR optical transceiver is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.7Gbps operation for an aggregate data rate of 42.8Gbps 2km, using single-mode fiber. These modules are designed to operate over single-mode fiber systems using a 1310nm FP laser array. An optical fiber ribbon cable with an MPO/MTP TM connector can be plugged into the QSFP module receptacle. QSFP+ PSM IR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Key Features

• MPO optical connector

• Single +3.3V power supply

• Hot-pluggable QSFP+ MSA form factor

• Up to 2km transmission of single-mode fiber

• 4x10.7G Electrical Serial Interface

• AC coupling of CML signals

• Low power dissipation(Max:2.5W)

• Built-in digital diagnostic function

• Operating case temperature range:0℃ to 70℃

• I2C Communication Interface

​

Protocol

• 40GBASE Ethernet​

• Infiniband QDR/DDR/SDR

• 40G Datacom connections

​

Parameters

FAQ

• ​What cable type is needed for this QSFP-40G-XSR4 Transceiver?

​​​This TQSFP+-40G-XSR4 uses a 12 core fibers OM3 OM4 MPO/MTP cable for direct connection

and an 8 core fibers MTP to 4 * LC breakout cable to interconnect the 10GBASE system

• What delivery method do you provide?

​

For Trial orders <500pcs, The goods will be sent by Express through DHL, FedEx, UPS, Aramex etc

For Large orders, there can choose air shipment, land shipment and sea freight

• How can I order your SFP?

​
Please send an inquiry through our website and leave your valid contact

Our Sales will touch you shortly and they will help handle your order

We support the payment via T/T, West Union, Paypal

​​

• What else SFP do you provide?

​

Topstar is an integrated SFP transceiver solution provider, with a reliable supply chain to

distribute brand original cisco, Finisar, brocade, innolight, dell-EMC, Avago, source etc transceiver

and joint factory to do OEM for 10G to 400G bandwidth Optical Transceiver.

• What brand compatibilities have your SFP been verified?​

​

Nokia-Alcatel, Ericsson, Cisco, Dell-EMC, Juniper, Arista, Extreme Network, Fortinet, 3COM, BDCOM, ZTE, DCN
