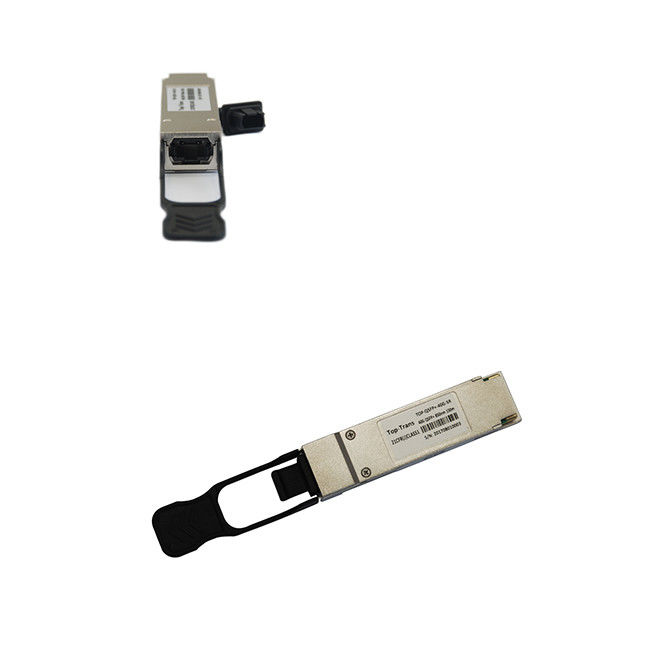

Mellanox MC2210511-PLR4 Compatible 40GbE MTP/MPO-12 10KM SMF QSFP+ Transceiver

Parameters

Top-Trans QSFP+-40G-PLR4 is a Mellanox MC2210511-PLR4 Compatible QSFP+ Optical Transceiver. This PLR4 transceiver provides an extended 40GbE link for private cloud aggregation of HPC, Enterprise and IDC Infrastructure up to the range of 10KM. This PLR4 module is fully compliant with the QSFP+ MSA and IEEE 802.3ae standards. This PLR4 module can work on the mode of Infiniband QDR and well interoperate with Mellanox MSN2100 Series Switch.

Top-Trans QSFP+-40G-PLR4 uses 4 integrated silicon modulators to create four parallel optical paths each capable of 10Gbps for the aggregate rate of 40Gbps. It is ideal for the fibre link of 10KM over eight cores single-mode fibre wires with MPO/MTP connectors. With build-in DDM/DOM functions, this module can monitor operation status and diagnose voltage, bias current, RX power, and TX power.

Key Features

• 4 Parallel lanes design

• Up to 11.2Gbps per channel bandwidth

• Aggregate bandwidth of > 40Gbps

• MTP/MPO optical connector

• Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

• QSFP MSA compliant

• Up to 10 km transmission

• Compliant with QDR/DDR Infiniband data rates

• Single +3.3V power supply operating

• Built-in digital diagnostic functions

• Temperature range from 0°C to 70°C

• RoHS-6 Compliant

​

Protocol

• 40GBASE Ethernet​

• Infiniband QDR/DDR/SDR

• 40G Datacom connections

​​​

FAQ

• Which Mellanox network device do you use for the compatibility test?


MCX516A-BDAT NIC

​

• Who is Topstar?

​

Topstar is an integrated SFP transceiver solution provider

Distribute brand original cisco, Finisar, brocade, lNNO LIGHT, dell-EMC, Avago, source etc transceiver

OEM & ODM for 1G to 800G bandwidth Optical Transceiver, MM, SM, BIDI, RJ45, CWDM, DWDM, AOC, DAC

• ​​Does your SFP provide a quality warranty?

​

​Yes, for every OEM SFP, we offer 3 years warranty​


• How can I make the order?​

​

​Please send an inquiry with the details of the demand (product, qty, compatible/original) and your valid contact

Our Sales will touch you shortly and they will help handle your order

​
