QSFP-40G-ESR4 Compatible QSFP+ Transceiver Module 850NM 400M For S5720-EI

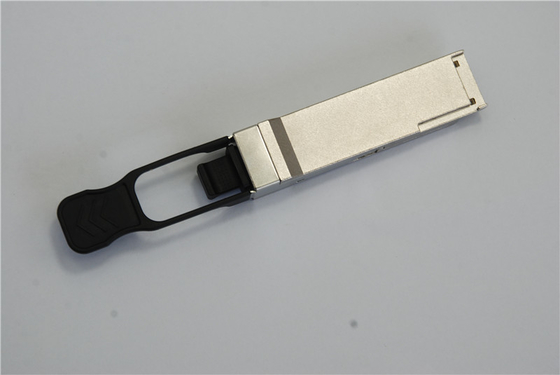

Large Image : QSFP-40G-ESR4 Compatible QSFP+ Transceiver Module 850NM 400M For S5720-EI

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Top-Trans
Certification:	ISO9001, ROHS, CE, FCC
Model Number:	TQSFP+-40G-SR4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	QSFP Blister box + Anti-static Bag
Delivery Time:	Negotiable
Payment Terms:	T/T, Western Union, Paypal,
Supply Ability:	3000pcs per month

Contact Now

QSFP-40G-ESR4 Compatible QSFP+ Transceiver Module 850NM 400M For S5720-EI

Description

Data Rate:	40G	Form-Factor:	QSFP+
Center Wavelength:	850NM	Transimission Distance:	100M Via OM3, 150M Via OM4
OEM/ODM:	Supported	Temperature:	0°C~70°C Commercial
Weight:	60 Grams	Warranty:	3 Years
High Light:	QSFP-40G-ESR4 For S5720-EI , QSFP+ Transceiver Module 850NM 400M , QSFP+ Transceiver Module For S5720-EI

QSFP-40G-eSR4 Compatible QSFP+ 40G Transceiver 850NM MPO MTP 400M MMF for S5720-EI

Parameters

Data Speed	40Gbps
Center Wavelength	850NM
Fiber Type	Multimode
Transmission	300m via OM3, 400m via OM4
Connector	MPO/MTP
Lasers	VCSEL + PIN
Tx power	-2.5 dBm
Rx sensitivity	-9.9 - 0 dBm
Extinction Ratio	3 dB
Power Consumption	< 3.5 W
Single Power Supply	3.3 v

For IDC Access and Aggregation, CloudEngine S5720 Series Ethernet switches are popular high-bandwidth Ethernet multi-service platforms for extensive enterprise network scenarios. Top-Trans QSFP+-40G-SR4 is a 40GBASE-SR4 transceiver equivalent to QSFP-40G-eSR4 for CloudEngine S5720-EI series switches. This QSFP+ module features the parallel Quad Small Form-Factor Pluggable (QSFP) with four independent 850NM VCSEL transmitters and PIN receivers. This QSFP module creates the data link of 40GBASE-SR4 over a 300 meters OM3 multimode fiber (400 meters via OM4). This QSFP+ Module features an MPO/MTP^TM connector for the latest 8 cores new cabling system. This QSFP+ module is fully compliant with IEEE 802.3by, IEEE 802.3cc, SFF-8402, SFF-8472, 21CFP-1040 LC#50 7/2001. It features build-in DDM/DOM via the I2C Interface to monitor the operating status.

Key Features

4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 300m transmission on OM3 multi-mode ribbon fiber
CML compatible electrical I/O
Single +3.3V power supply
Operating case temperature: 0~70C
XLPPI electric interface (with 1.5W Max power)
RoHS-6 compliant

Protocol

40GBASE-SR4 Ethernet

FAQ

How can I make the order?

Please send an inquiry with the details of the demand (product, qty, compatible/original) and your valid contact

Our Sales will touch you shortly and they will help handle your order

What cable type is needed for this QSFP-40G-XSR4 Transceiver?

This TQSFP+-40G-XSR4 uses a 12 core fibers OM3 OM4 MPO/MTP cable for direct connection

and an 8 core fibers MTP to 4 * LC breakout cable to interconnect the 10GBASE system

Whether using compatible optics affect the equipment warranty?

No, Network equipment manufacturers mosts enable the use of 3rd party optics and they will continue to provide support for the broken product under warranty if the fault or defect is not caused by the use of 3rd party optics.
