Innolight QSFP28 100G CWDM4 MSA 2km TR-FC13T-N00 For Data Center Interconnect

Innolight 100Gb/s QSFP28 CWDM4 2km Optical Module Transceiver TR-FC13T-N00

TR-FC13T-N00 Features

• QSFP28 MSA compliant

• 4 CWDM lanes MUX/DEMUX design

• Supports 103.1Gb/s aggregate bit rate

• 100G CWDM4 MSA Technical Spec Rev1.1

• Up to 2km transmission on single mode fiber (SMF) with FEC

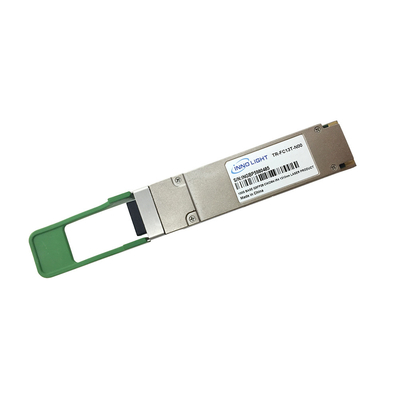

• Operating case temperature: 0 to 70oC Applications Module picture shown above is that of InnoLight standard part and is for reference.

• Data Center Interconnect

• 4x25G electrical interface (OIF CEI-28G-VSR)

• Maximum power consumption 3.5W

• LC duplex connector

• RoHS compliant

APPLICATIONS

• Data Center Interconnect

• 100G Ethernet

• Infiniband QDR and DDR interconnects

• Enterprise networking

TR-FC13T-N00 description

This product is a transceiver module designed for 2km optical communication applications.

The design is compliant to 100GBASE CWDM4 MSA standard.

The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of optical modules?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
