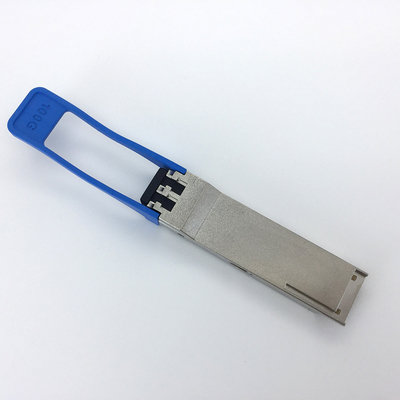

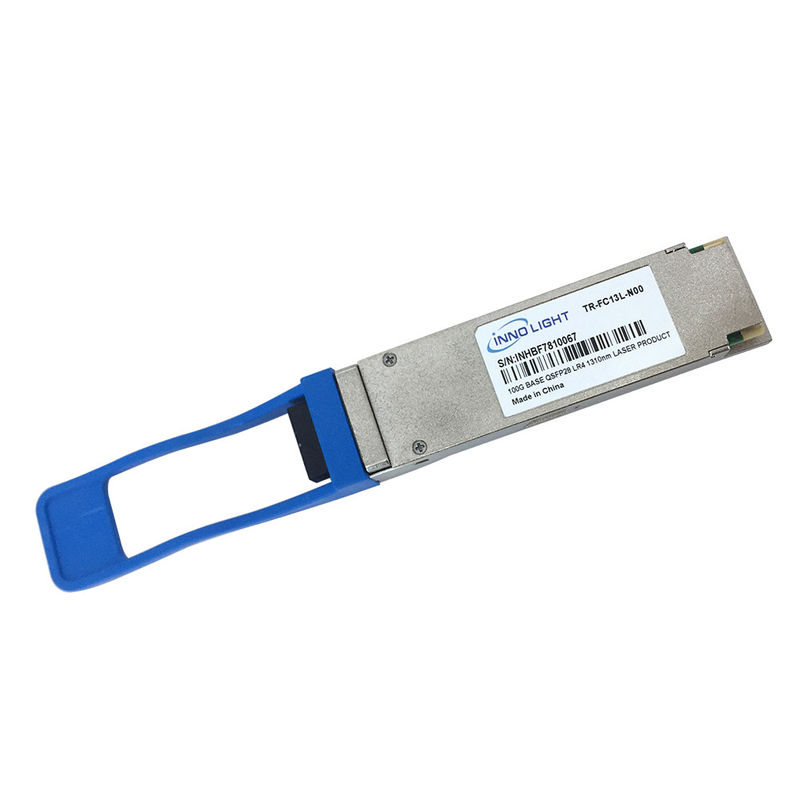

100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00

Innolight 100Gb/s QSFP28 LR4 Optical Module Transceiver TR-FC13L-N00

TR-FC13L-N00 Features

• Hot pluggable QSFP28 MSA form factor

• Compliant to IEEE 802.3ba 100GBASE-LR4

• Supports 103.1Gb/s aggregate bit rate

• Up to 10km reach for G.652 SMF

• Single +3.3V power supply

• Operating case temperature: 0~70oC

• Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

• Receiver: 4x25Gb/s PIN ROSA

• 4x25G electrical interface (OIF CEI-28G-VSR)

• Maximum power consumption 4.5W

• Duplex LC receptacle RoHS-6 compliant

APPLICATIONS

• 100GBASE-LR4 Ethernet Links

• Infiniband QDR and DDR interconnects

• Client-side 100G Telecom connections

TR-FC13L-N00 description

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard.

The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of optical modules?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
