D-Link DEM-QX01Q-SR4 Compatible QSFP+ 850NM 150M MPO/MTP 40GbE Transceiver

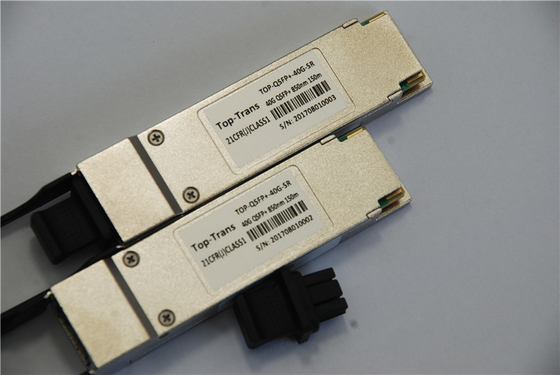

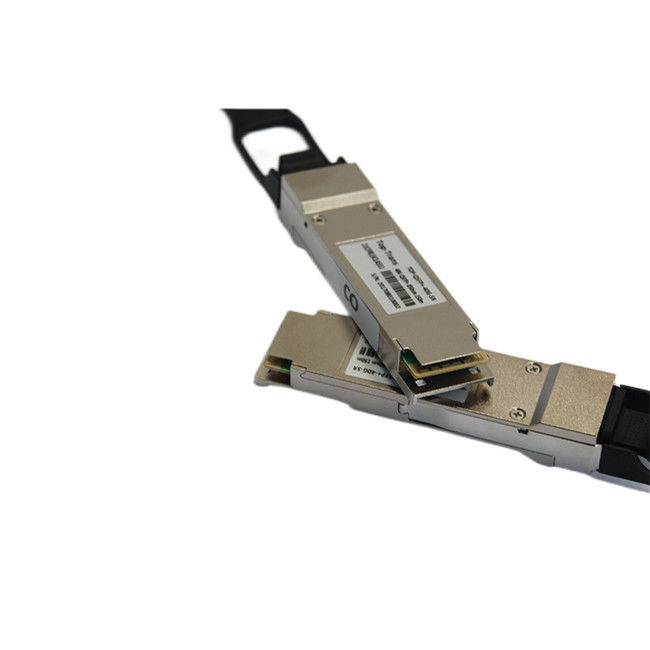

Top-Trans QSFP+-40G-SR4 is a Hot Pluggable QSFP+ transceiver equivalent to D-Link DEM-QX01Q-SR4, designed to offer 40GBASE connectivity for data centers, enterprise, and HPC centers.

This QSFP+ module features the parallel Quad Small Form-Factor Pluggable (QSFP) with four independent 850NM VCSEL transmitters and PIN receivers. This QSFP module creates the data link of 40GBASE-SR4 over a 100 meters OM3 multimode fiber (150 meters via OM4). This QSFP+ Module features an MPO/MTP^TM connector for the latest 8 cores new cabling system. This QSFP+ module is fully compliant with IEEE 802.3by, IEEE 802.3cc, SFF-8402, SFF-8472, 21CFP-1040 LC#50 7/2001. It features build-in DDM/DOM via the I2C Interface to monitor the operating status.

Key Features

• 4 independent full-duplex channels

• Up to 11.2Gbps data rate per channel

• MTP/MPO optical connector

• QSFP MSA compliant

• Digital diagnostic capabilities

• Capable of over 100m transmission on OM3 multi-mode ribbon fiber

• CML compatible electrical I/O

• Single +3.3V power supply

• Operating case temperature: 0~70C

• XLPPI electric interface (with 1.5W Max power)

• RoHS-6 compliant

​

Protocol

• 40GBASE-SR4 Ethernet​

​

Parameters

​​

FAQ

• What D-link devices do you use for the compatibility test?

​

DQS-5000-32S/A1

• How can I order your SFP?

​
Please send an inquiry through our website and leave your valid contact

Our Sales will touch you shortly and they will help handle your order

We support the payment via T/T, West Union, Paypal

​​

• What else SFP do you provide?

​

Topstar is an integrated SFP transceiver solution provider, with a reliable supply chain to

distribute brand original cisco, Finisar, brocade, innolight, dell-EMC, Avago, source etc transceiver

and joint factory to do OEM for 10G to 400G bandwidth Optical Transceiver.

• What brand compatibilities have your SFP been verified?​

​

Nokia-Alcatel, Ericsson, Cisco, Dell-EMC, Juniper, Arista, Extreme Network, Fortinet, 3COM, BDCOM, ZTE, DCN
