Product Details:
|
| Data Rate: | 10Gb/s | Form-Factor: | SFP |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 300m |
| Temperature: | 0℃ To 70℃ | Connector: | Dual-LC |
| Cable Type: | MMF | DDM: | Yes |
| High Light: | AFBR-703SDZ-IN2 Original SFP Module,SFP Module 850nm Dual Rate 10G,Dual Rate 10G Original SFP Module |
||

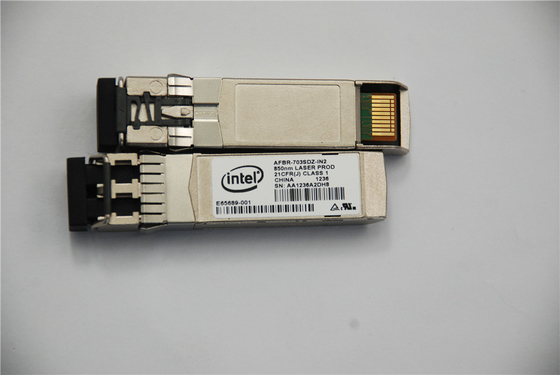

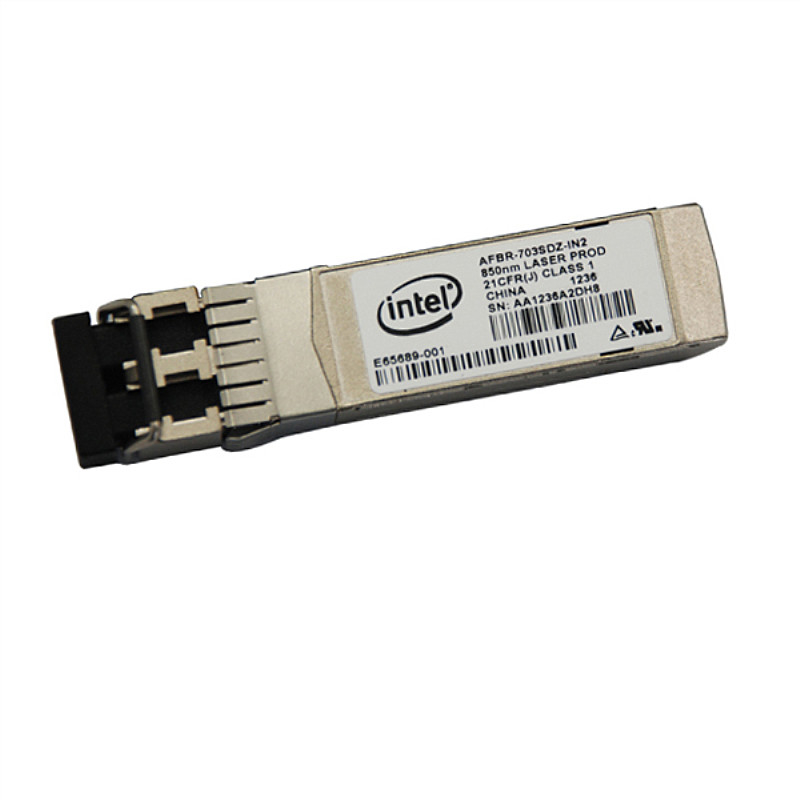

Intel AFBR-703SDZ-IN2 SFP Original Optical Transceiver Dual Rate 10G
| Fiber Type | Single mode |
| Weight | 0.03kg |
| Warranty | 1 year |
| Tx power | -6.00 to -1.00 dBm |
| Rx sensitivity | -11.1 to -1.00 dBm |
| Extinction Ratio | 2.0dB |
| Power Consumption | 2.5W |
| Single Power Supply | 3.3V |
AFBR-703SDZ-IN2 Features
• Operating Data Rate up to 10.3Gbps
• Single 3. 3V Power Supply and TTL Logic Interface
• Hot Pluggable
• 850nm VCSEL Transmitter
• Reach:
• Operating Case Temperature o Standard: 0℃~+70℃ o Industrial: -40℃~+85℃
• Compliant with MSA
• Compliant with IEEE 802.3ae 10GBASE-SR
• Digital Diagnostic Monitor Interface
• Compliant with SFF-8472
General Information
Input Devices
Media & Performance
Technical Information
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
