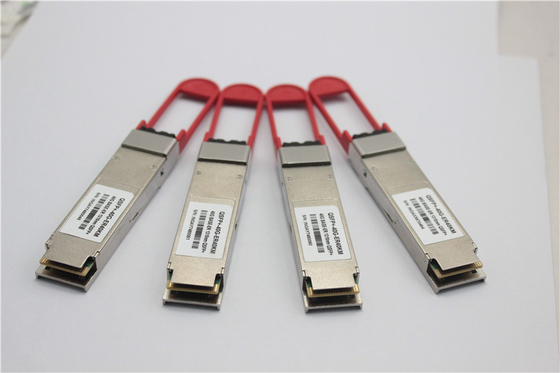

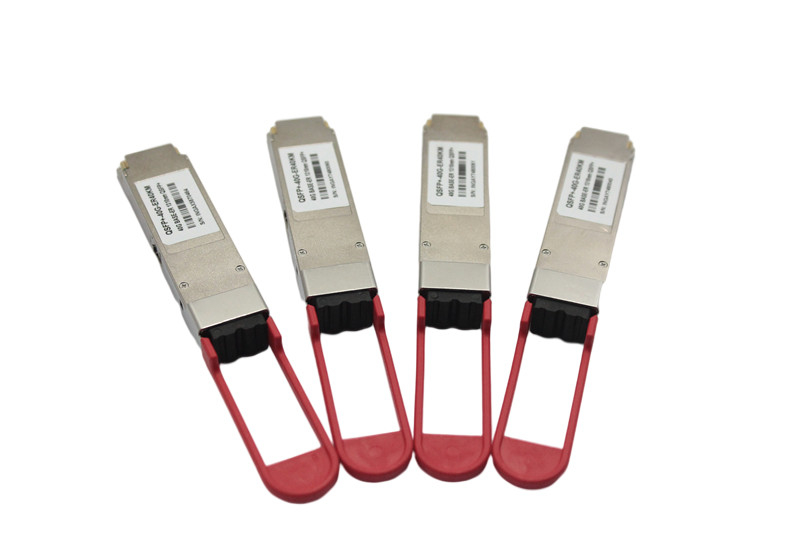

Cisco QSFP-40G-ER4 Compatible Transceiver 40GbE QSFP+ 1310NM 40KM DOM Dual LC

Top-trans QSFP+-40G-ER4 is designed for data center and Enterprise wide-area interconnection. This QSFP+ module provides high speed, low latency, and reliable optic connection for service distribution within a wide area region and seamless communication.

This QSFP+ module is equivalent to Cisco QSFP-40G-ER4, with excellent interoperation on the Cisco Catalyst 9600 series switches.

It is fully compliant with the industry MSA agreement for 40GBASE-ER4, using WDM technology to couple four individual 10Gbps CWDM waves into one 40Gbps 1310NM optical path. This QSFP+ module is made up of four CWDM DFB TOSA and APD ROSA for enough link budget to 40KM transmission over single mode fiber with LC duplex connectors and an QSFP+ Interface for port contact with switches, servers and NIC. With the Built-in DOM/DDM function, network maintenance can monitor its working statuses like operation temperature, voltage, bias current, RX power, and TX power for network diagnostic and adjustment.

Key Features

• Hot-pluggable QSFP+ form factor

• 4 channels full-duplex transceiver module

•  4x uncooled CWDM DFB lasers and APD ROSA

•  XLPPI electrical interface

• Compliant with QSFP MSA, IEEE 802.3bm 40GBASE-ER4 and OTN OTU3

• Data rate up to 44Cbps

• Reach up to 40km on SMF

• 18.5dB link insertion loss budget

• Power consumption < 3.5W

• Duplex LC receptacles

• Operating case temperature range from 0°C to 70°C

• Single 3.3V power supply

• RoHS compliant (lead-free)

​

Protocol

• 40GBASE-ER4 Ethernet Links​

• -OTN OTU3/OTU3el/OTU3e2

​
