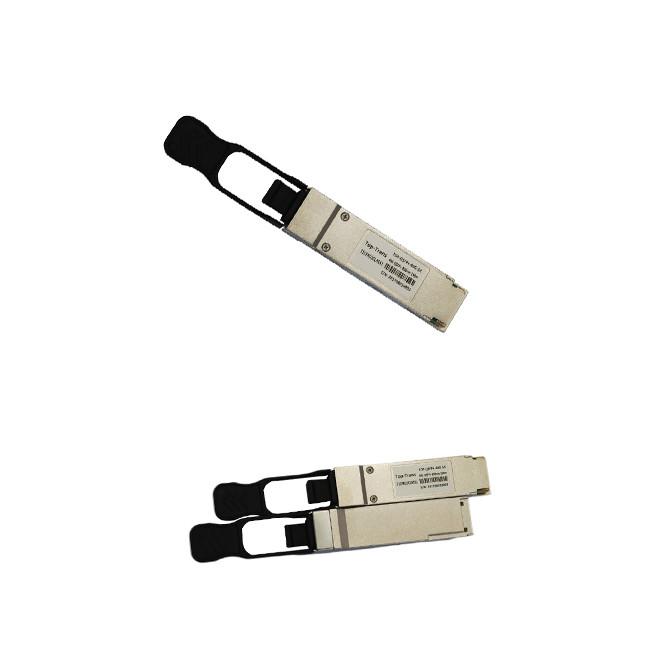

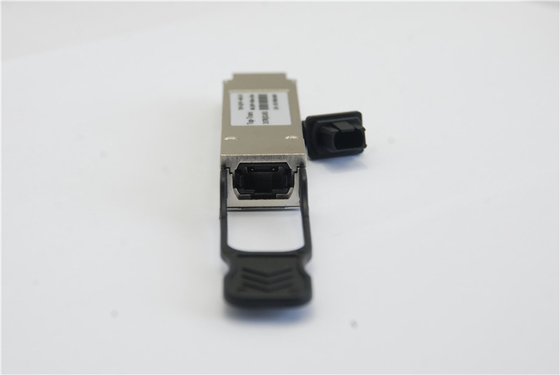

850NM 150M MTP MPO Transceiver 40GBASE-SR4 QSFP+ Cisco QSFP-40G-SR4 Compatible

850NM 150M MTP MPO Transceiver 40GBASE-SR4 QSFP+ Cisco QSFP-40G-SR4 Compatible
850NM 150M MTP MPO Transceiver 40GBASE-SR4 QSFP+ Cisco QSFP-40G-SR4 Compatible 850NM 150M MTP MPO Transceiver 40GBASE-SR4 QSFP+ Cisco QSFP-40G-SR4 Compatible

Large Image :  850NM 150M MTP MPO Transceiver 40GBASE-SR4 QSFP+ Cisco QSFP-40G-SR4 Compatible

Product Details:
Place of Origin: Guangdong, China
Brand Name: Top-Trans
Certification: ISO9001, ROHS, CE, FCC
Model Number: TQSFP+-40G-SR4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: QSFP Blister box + Anti-static Bag
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, Paypal,
Supply Ability: 3000pcs per month

850NM 150M MTP MPO Transceiver 40GBASE-SR4 QSFP+ Cisco QSFP-40G-SR4 Compatible

Description
Data Rate: 40G Form-Factor: QSFP+
Center Wavelength: 850NM Transimission Distance: 100M Via OM3, 150M Via OM4
OEM/ODM: Supported Temperature: 0°C~70°C Commercial
Weight: 60 Grams Warranty: 3 Years
Highlight:

850NM 150M MTP MPO 40GBASE-SR4

,

850NM 150M 40GBASE-SR4 QSFP+

,

Cisco QSFP-40G-SR4 MPO Transceiver

Cisco QSFP-40G-SR4 Compatible Transceiver 40GBASE-SR4 QSFP+ 850NM 150M MTP MPO



The TOP-QSFP+-40G-SR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 10.3125Gbps up to 100m using OM3 fiber or 150m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector. This module incorporates Topstar Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.



The TOP-QSFP+-40G-SR4 is equivalent to the Cisco QSFP-40G-SR4 QSFP+ optics module, of excellent interoperation with Cisco QSFP+ port optical transport devices such as Cisco Catalyst C9500-48Y4C Switches, Nexus N3K-C3132Q-40GX Switches, ASR1004-40G-NB routers etc.



Key Features



  • 4 independent full-duplex channels

  • Up to 11.2Gbps data rate per channel

  • MTP/MPO optical connector

  • QSFP MSA compliant

  • Digital diagnostic capabilities

  • Capable of over 100m transmission on OM3 multi-mode ribbon fiber

  • CML compatible electrical I/O

  • Single +3.3V power supply

  • Operating case temperature: 0~70C

  • XLPPI electric interface (with 1.5W Max power)

  • RoHS-6 compliant

Protocol



  • 40GBASE-SR4 Ethernet

Parameters



850NM 150M MTP MPO Transceiver 40GBASE-SR4 QSFP+ Cisco QSFP-40G-SR4 Compatible 0



Data Speed

40Gbps

Center Wavelength

850NM

Fiber Type

Multimode

Transmission

100m via OM3, 150m via OM4

Connector

MPO/MTP

Lasers

VCSEL + PIN

Tx power

-2.5 dBm

Rx sensitivity

-9.9 - 0 dBm

Extinction Ratio

3 dB

Power Consumption

< 3.5 W

Single Power Supply

3.3 v

FAQ



  • What's the price of this compatible transceiver?

The price is negotiable. Please advise the project requirement on quantity, link budget, compatibility and lead time.

Top-star is one of the best 3rd party suppliers and our sales will make the best quote meeting your expectation



  • Can you ship this SFP module to my place?


Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

​​

  • What's the lead time of production?

For trial qty, we have stock ready to ship in 3 working days.

For large qty, our standard monthly production capacity is 3000pcs, up to 10000pcs.



  • What brand compatibilities have your SFP been verified?

Nokia-Alcatel, Ericsson, Cisco, Dell-EMC, Juniper, Arista, Extreme Network, Fortinet, 3COM, BDCOM, ZTE, DCN
