40GBASE-SR4 Optical Transceiver QSFP+ 40G 850NM 100M MMF MPO MTP For LAN

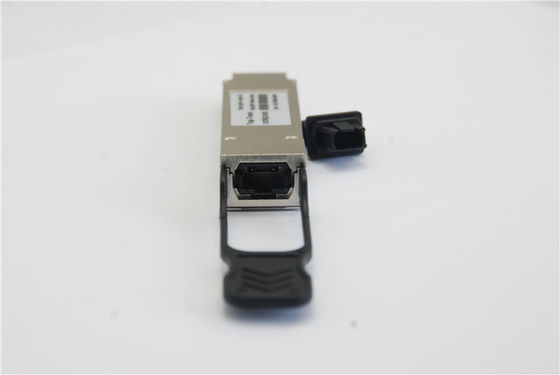

Top-Trans QSFP+-40G-SR4 is a parallel Quad Small Form-Factor Pluggable (QSFP) Transceiver for 40GBASE-SR4 LAN. This QSFP+ module has four independent 850NM VCSEL transmitters and PIN receivers, each offering a channel of 10Gbps for an aggregate bandwidth of 40Gbps over the fiber link of 100 meters via OM3 multimode fiber (150 meters via OM4). This QSFP+ Module features an MPO/MTP^TM connector to be plugged into the QSFP port of 40GBASE Servers, Switches, Routers, Firewall, NIC etc networking equipment. This QSFP+ module is fully compliant with IEEE 802.3by, IEEE 802.3cc, SFF-8402, SFF-8472, 21CFP-1040 LC#50 7/2001. It features build-in DDM/DOM via the I2C Interface to monitor the operating status.

Key Features

• 4 independent full-duplex channels

• Up to 11.2Gbps data rate per channel

• MTP/MPO optical connector

• QSFP MSA compliant

• Digital diagnostic capabilities

• Capable of over 100m transmission on OM3 multi-mode ribbon fiber

• CML compatible electrical I/O

• Single +3.3V power supply

• Operating case temperature: 0~70C

• XLPPI electric interface (with 1.5W Max power)

• RoHS-6 compliant

​

Protocol

• 40GBASE-SR4 Ethernet​

​

Parameters

​​

FAQ

• What delivery method do you provide?

​

For Trial orders <500pcs, The goods will be sent by Express through DHL, FedEx, UPS, Aramex etc

For Large orders, there can choose air shipment, land shipment and sea freight

• How can I order your SFP?

​
Please send an inquiry through our website and leave your valid contact

Our Sales will touch you shortly and they will help handle your order

We support the payment via T/T, West Union, Paypal

​​

• What else SFP do you provide?

​

Topstar is an integrated SFP transceiver solution provider, with a reliable supply chain to

distribute brand original cisco, Finisar, brocade, innolight, dell-EMC, Avago, source etc transceiver

and joint factory to do OEM for 10G to 400G bandwidth Optical Transceiver.

• What brand compatibilities have your SFP been verified?​

​

Nokia-Alcatel, Ericsson, Cisco, Dell-EMC, Juniper, Arista, Extreme Network, Fortinet, 3COM, BDCOM, ZTE, DCN
