Product Details:
|
| Form-Factor: | QSFP28 | Data Rate: | 100G |
|---|---|---|---|
| Center Wavelength: | LWDM4 | Transmission Distance: | 80KM |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.06KG Per Piece | Warranty: | 3 Years |
| Highlight: | Hot Pluggable 100G QSFP28 Module,80KM 100G QSFP28 Module,100GBASE-ZR4 80KM |
||

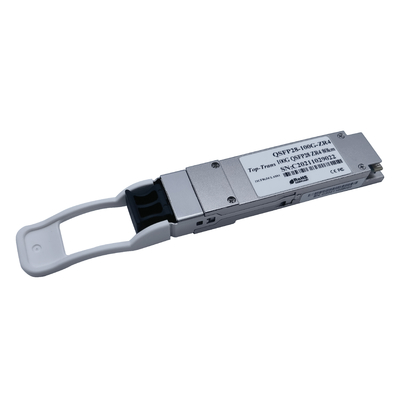

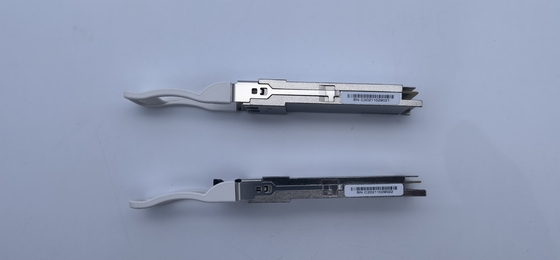

QSFP28 Module 100GBASE-ZR4 100G Ethernet LWDM4 80KM ZR4 SFP Network Switch
QSFP28 Module SFP Network Switch
TOPSTAR TQSFP28-100G-ZR4 is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1.
Parameters
| Fiber Type | Single-mode Cable |
| Connector | LC |
| Lasers and TIA | EML APD |
| Tx Power | 2 to 6.5 dBm |
| Rx Sensitivity | -28 to -7 dBm |
| Extinction Ratio | 6 dB |
| Power Consumption | 6.5 W |
| Single Power Supply | 3.3 V |
PRODUCT FEATURES
APPLICATIONS
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
