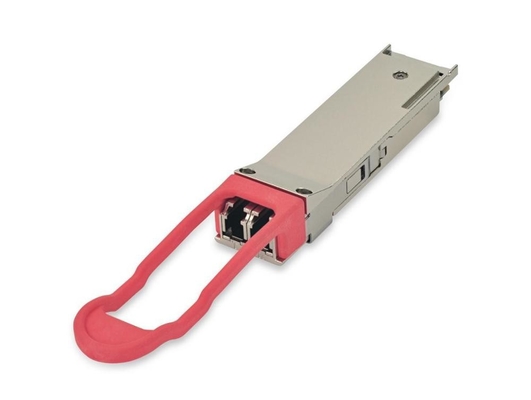

QSFP 100G 40km EML Laser APD Receiver LWDM4 QSFP28-ER4 For Fiber Switch

QSFP 100G 40km EML Laser APD Receiver LWDM4 QSFP28-ER4 For Fiber Switch
QSFP 100G 40km EML Laser APD Receiver LWDM4 QSFP28-ER4 For Fiber Switch

Large Image :  QSFP 100G 40km EML Laser APD Receiver LWDM4 QSFP28-ER4 For Fiber Switch

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TQSFP28-100G-ER4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per Day

QSFP 100G 40km EML Laser APD Receiver LWDM4 QSFP28-ER4 For Fiber Switch

Description
Form-Factor: QSFP28 Data Rate: 100G
Center Wavelength: LWDM4 Transmission Distance: 40KM
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.06KG Per Piece Warranty: 3 Years
Highlight:

QSFP 100G 40km APD Receiver

,

APD Receiver LWDM4 QSFP28-ER4

,

QSFP28-ER4 QSFP 100G 40km

100G QSFP28 ER4 EML Laser APD Receiver 40km LWDM4 QSFP28-ER4 Fiber Switch

100G QSFP28 ER4





Parameters

Fiber Type Single-mode Cable
Connector LC
Lasers and TIA EML and APD
Tx Power -2.5 to 6.5 dBm
Rx Sensitivity <-18.5 dBm
Extinction Ratio 4.5 dB
Power Consumption 4.5 W
Single Power Supply 3.3 V



TOPSTAR’s TOP-QSFP28-100G-ER4 module is designed for 40km optical communication applications, and it is compliant to IEEE 802.3ba for 100GE Ethernet and ITU-T 4L1-9C1F for OTU-4.

This module contains 4-lane optical transmitter, 4-lane optical receiver and module manage- ment block including 2 wire serial interface.

The optical signals are multiplexed to a single- mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1.



The LPMode pin shall be pulled up to Vcc in the module. The pin is a hardware control used to put modules into a low power mode when high. By using the LPMode pin and a combina- tion of the Power override, Power_set and High_Power_Class_Enable software control bits (Address A0h, byte 93 bits 0,1,2).



ModPrsL is pulled up to Vcc_Host on the host board and grounded in the module. The Mod- PrsL is asserted "Low" when inserted and deasserted "High" when the module is physically absent from the host connector.



PRODUCT FEATURES

  •  Compliant with QSFP28 Standard:
  •  SFF-8665 Revision 1.9, SFF-8636 Revision 2.6
  •  Compliant with 100G 4WDM-40 MSA technical specification rev 1.0
  •  High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm
  •  Single 3.3V Supply Voltage
  •  Maximum power consumption 4.5W
  •  0-70 ºC Case Operating Temperature
  •  LAN WDM EML laser and APD Receiver
  •  QSFP28 MSA package with duplex LC connector
  •  Two Wire Serial Interface with Digital Diagnostic Monitoring
  •  Complies with EU Directive 2011/65/EU (RoHS compliant)
  •  Class 1 Laser



APPLICATIONS

  • 100GBASE-ER4 100G Ethernet
  • OTN OTU4 4L1-9C1F
  • Telecom networking
  • Data Center Interconnect
  • Enterprise networking



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
