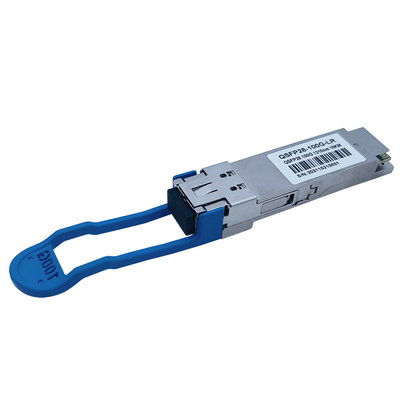

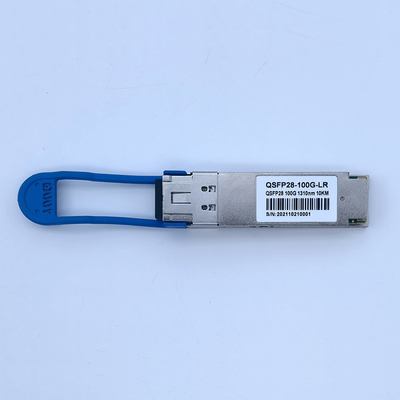

QSFP28 OTU4 100Gbps 112Gbps Fiber Optic Receiver Module Dual Data Rate LWDM4 10KM LR4 SMF

QSFP28 OTU4 100Gbps 112Gbps Fiber Optic Receiver Module Dual Data Rate LWDM4 10KM LR4 SMF
QSFP28 OTU4 100Gbps 112Gbps Fiber Optic Receiver Module Dual Data Rate LWDM4 10KM LR4 SMF QSFP28 OTU4 100Gbps 112Gbps Fiber Optic Receiver Module Dual Data Rate LWDM4 10KM LR4 SMF

Large Image :  QSFP28 OTU4 100Gbps 112Gbps Fiber Optic Receiver Module Dual Data Rate LWDM4 10KM LR4 SMF

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TQSFP28100-LR4DU
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per Day

QSFP28 OTU4 100Gbps 112Gbps Fiber Optic Receiver Module Dual Data Rate LWDM4 10KM LR4 SMF

Description
Form-Factor: QSFP28 Data Rate: 100G 112G
Center Wavelength: LWDM4 Transmission Distance: 10KM
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.06KG Per Piece Warranty: 3 Years
Highlight:

10KM LR4 SMF OTU4 100G

,

112Gbps Fiber Optic Receiver Module

,

LR4 SMF Fiber Optic Receiver Module

QSFP Fiber Optic QSFP28 OTU4 100Gbps 112Gbps Dual Data Rate LWDM4 10KM LR4 SMF

QSFP Fiber Optic OTU4 100G 112G



This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39(G.sup39).

The module converts 4 input channels of 28Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56,1300.05,1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba.

The high performance cooled LAN WDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA).

It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.



Parameters

Fiber Type Single-mode Cable
Connector LC
Lasers and TIA DML and PIN
Tx Power -0.6 to 4 dBm
Rx Sensitivity -6.9 to 4 dBm
Extinction Ratio 4.0 dB to 6.5 dB
Power Consumption 3.5 W
Single Power Supply 3.3 V



PRODUCT FEATURES

  •  4 channels full-duplex transceiver modules
  •  Transmission data rate up to 28Gbps per channel
  •  4 x 28Gb/s DFB-based LAN-WDM Cooling transmitter
  •  4 channels PIN ROSA
  •  Internal CDR circuits on both receiver and transmitter channels
  •  Low power consumption<3.5W
  •  Hot Pluggable QSFP form factor
  •  Up to reach 10km for G.652 SMF
  •  Duplex LC receptacles
  •  Operating case temperature 0°C to +70°C
  •  3.3V power supply voltage
  •  RoHS 6 compliant(lead free)



APPLICATIONS

  •  IEEE 802.3ba 100GBASE LR4
  •  OTN OTU4 and 100GE



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
