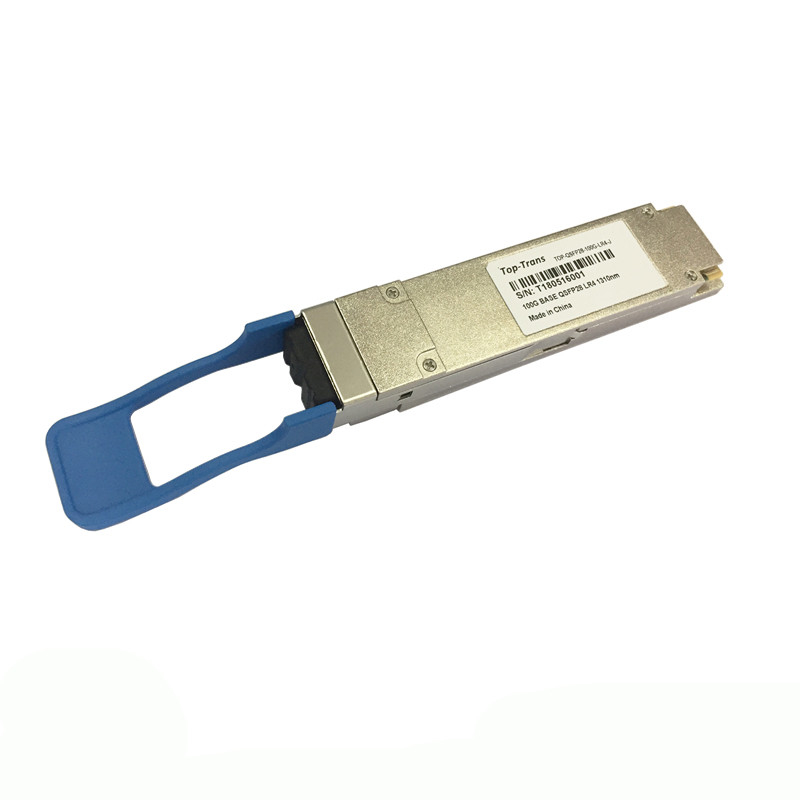

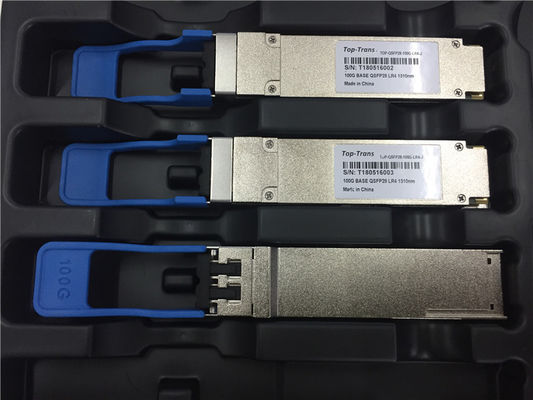

LR4 100G QSFP28 Module 10km 4x25G LWDM4 Single Mode 1310nm

LR4 100G QSFP28 Module 10km 4x25G LWDM4 Single Mode 1310nm
LR4 100G QSFP28 Module 10km 4x25G LWDM4 Single Mode 1310nm LR4 100G QSFP28 Module 10km 4x25G LWDM4 Single Mode 1310nm

Large Image :  LR4 100G QSFP28 Module 10km 4x25G LWDM4 Single Mode 1310nm

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TQSFP28100G-LRRX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200pcs per Day

LR4 100G QSFP28 Module 10km 4x25G LWDM4 Single Mode 1310nm

Description
Form-Factor: QSFP28 Data Rate: 100G
Center Wavelength: LWDM4 Transmission Distance: 10KM
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.06KG Per Piece Warranty: 3 Years
Highlight:

100G QSFP28 4x25G LWDM4

,

100G QSFP28 4x25G LWDM4 1310nm

,

LR4 100G QSFP28 4x25G LWDM4

100G QSFP28 10km Transceiver 4x25G LWDM4 1310NM LR4 Receiver Module

100G QSFP28 10km Transceiver



This product is a 100Gb/s receiver module designed for optical communication applications compliant to 100G BASE-LR4 of the IEEEP802.3ba standard.

The module converts the receiver side, the module de- multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and the converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LANWDM channels are 1295.56, 1300.05, 1304.58and 1309.14nm as members of the LANWDM wavelength grid defined in IEEE802.3ba.

The high sensitivity PIN receivers provide superior performance for 100 Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88100G BASE-LR4 requirements.



Parameters

Fiber Type Single-mode Cable
Connector LC
Lasers and TIA PIN

Data Rate, each Lane

25.78125 Gbps

Rx Sensitivity less than -8.6 dBm

Receiver Reflectance

-26 dBm
Max Power Consumption 2 W
Single Power Supply 3.3 V



PRODUCT FEATURES

  •  Hot pluggable QSFP28 MSA formfactor
  •  Single +3.3V power supply
  •  Operating case temperature:0~70°C
  •  Receiver:4x25Gb/s PIN ROSA
  •  4x25G Electrical Serial Interface (CEI-28G-VSR)
  •  Maximum power consumption 2W
  •  LC receptacle
  •  RoHS-6 compliant



APPLICATIONS

  •  100GBASE-LR4 Ethernet Receiver monitor



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: EXW-Shenzhen or FOB-Shenzhen or More you want

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)



We can supply according to your request.
