QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector

QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector
QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector

Large Image :  QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TQSFP28-100G-SR4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per Day

QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector

Description
Form-Factor: QSFP28 Data Rate: 100G
Center Wavelength: 850NM Transmission Distance: 100M
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.06KG Per Piece Warranty: 3 Years
Highlight:

SR4 100Gbs Optical Transceiver Module

,

qsfp28 sr4 850nm 100m

,

MPO Connector qsfp28 sr4

Optical Transceiver Module QSFP28 100Gbs 850nm SR4 100m MPO Connector





100G Optical Transceiver Module OF QSFP28



This product is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module.

It provides increased port density and total system cost savings.

The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.



Parameters OF QSFP28

Fiber Type OM3 or OM4 Multi-mode Cable
Connector MPO
Lasers and TIA VCSEL and PIN
Tx Power -8.4 to 2.4 dBm
Rx Sensitivity -10.3 to 2.4 dBm
Extinction Ratio 2.0 dB
Power Consumption 3.5 W
Single Power Supply 3.3 V



PRODUCT FEATURES OF QSFP28

  •  4 independent full-duplex channels
  •  Up to 25Gb/s data rate per channel
  •  QSFP28 MSA compliant
  •  Compliant to IEEE 802.3bm 100GBASE-SR4
  •  Up to 100m OM4 MMF transmission
  •  Operating case temperature: 0 to 70oC
  •  Single 3.3V power supply
  •  Maximum power consumption 3.5W
  •  MTP/MPO optical connector
  •  RoHS-6 compliant



APPLICATIONS OF QSFP28

  •  Rack to Rack
  •  Data Center
  •  Infiniband QDR, DDR and SDR
  •  100G Ethernet

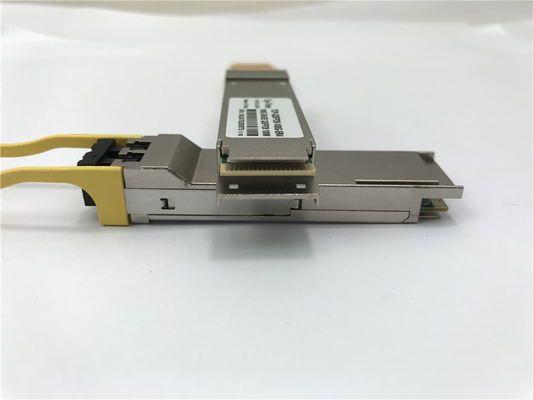

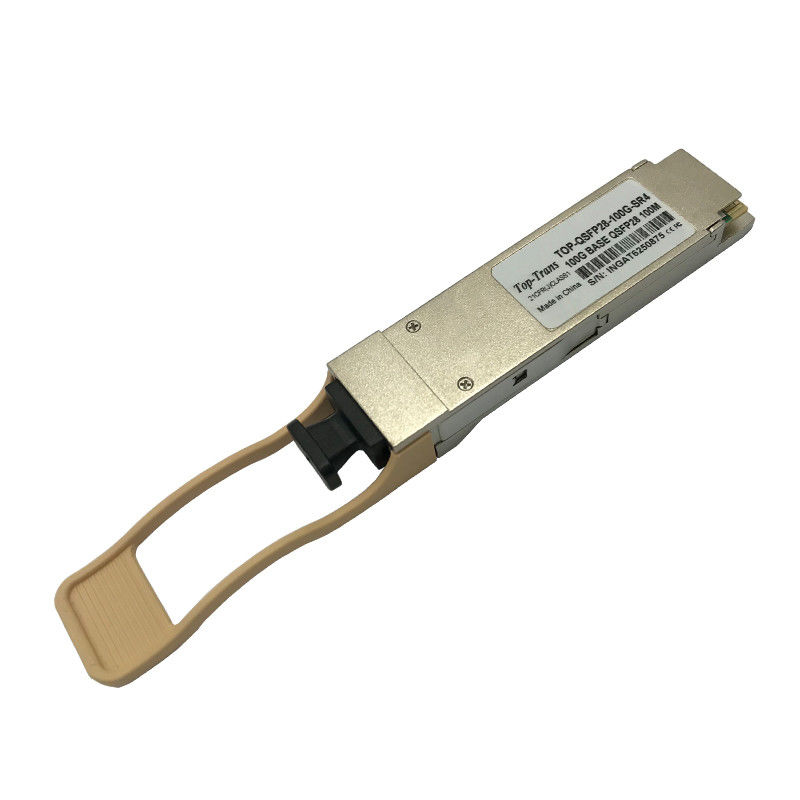

QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector 0QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector 1

QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector 2

QSFP28 SR4 100Gbs Optical Transceiver Module 850nm 100m MPO Connector 3

FAQ OF QSFP28

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
