Product Details:
|
| Form-Factor: | QSFP56 | Data Rate: | 400G |
|---|---|---|---|
| Center Wavelength: | 1310nm | Transmission Distance: | 2km |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.06KG Per Piece | Warranty: | 3 Years |
| Highlight: | EML 400G-QSFP-DD-LR4,2km 400G-QSFP-DD-LR4,RTXM290-342 CWDM Transceiver |
||

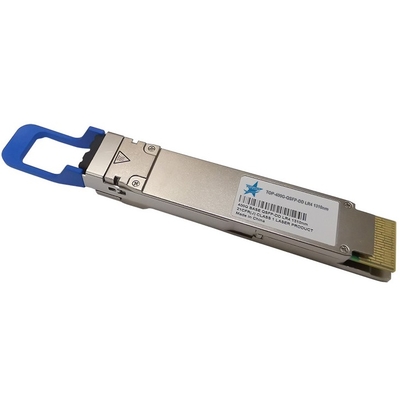

400G-QSFP-DD-LR4 2km Optical Module RTXM290-342 CWDM Transceiver EML Original
400G QSFP-DD LR4 is a type of transceiver module that is used in high-speed data communications networks. QSFP-DD stands for Quad Small Form-factor Pluggable Double Density and LR4 stands for Long Range 4.
This transceiver module can transmit data at a rate of 400 Gigabits per second (Gbps) over a distance of up to 10 kilometers. The LR4 designation indicates that it uses four channels of 100Gbps each, with each channel transmitting data over a different wavelength (1310nm, 1295nm, 1275nm, and 1255nm) in the optical fiber.
This type of transceiver module is commonly used in data centers and high-performance computing applications where high-speed and long-distance data transmission is required. It is typically used to connect switches, routers, and other networking equipment.
Parameters
| Fiber Type | SMF |
| Connector | MPO-12 |
| Lasers and TIA | EML APD |
| Tx Power | 0.4 to 6.5 dBm |
| Rx Sensitivity | -29 to -15.1 dBm |
| Extinction Ratio | 6 dB |
| Power Consumption | <12 W |
| Single Power Supply | 3.3 V |
PRODUCT FEATURES
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
