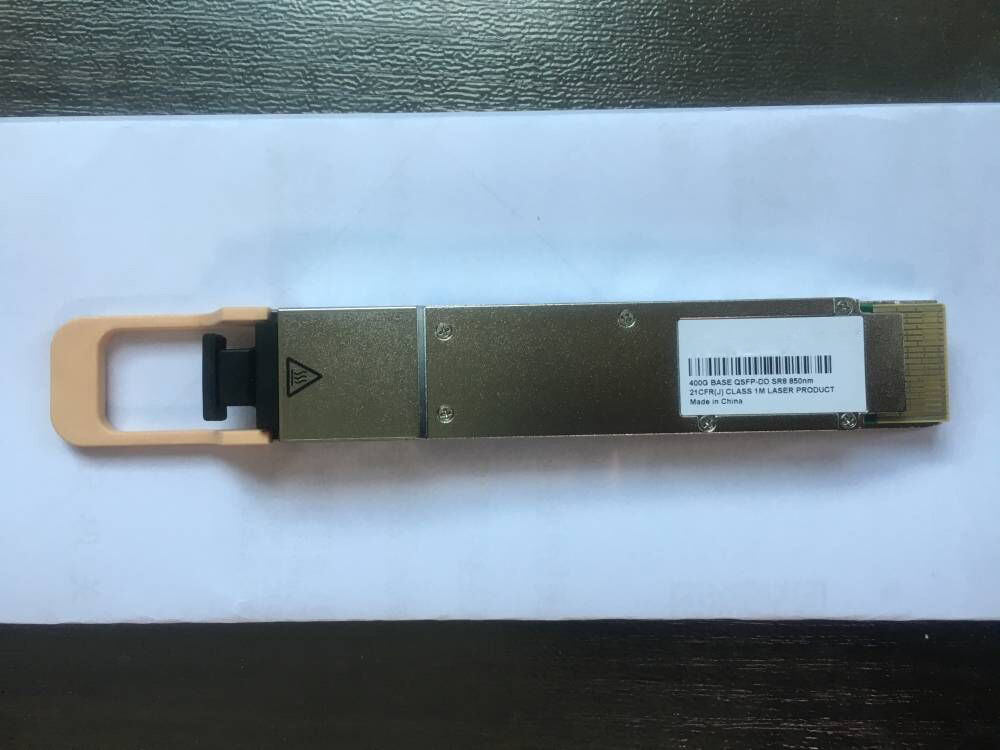

SR8 100m OM3 400GBASE-SR8 SFP Switch Fiber Module 400Gb/S 850nm

SR8 100m OM3 400GBASE-SR8 SFP Switch Fiber Module 400Gb/S 850nm
SR8 100m OM3 400GBASE-SR8 SFP Switch Fiber Module 400Gb/S 850nm

Large Image :  SR8 100m OM3 400GBASE-SR8 SFP Switch Fiber Module 400Gb/S 850nm

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TQSFPDD400G-SR8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per Day

SR8 100m OM3 400GBASE-SR8 SFP Switch Fiber Module 400Gb/S 850nm

Description
Form-Factor: QSFP-DD Data Rate: 400G
Center Wavelength: 850NM Transmission Distance: 100M
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.06KG Per Piece Warranty: 3 Years
Highlight:

100m OM3 400GBASE-SR8

,

Switch Fiber Module 400GBASE-SR8

,

SR8 100m OM3 Switch Fiber Module

QSFP-DD 400Gb/S 850nm SR8 100m OM3 400GBASE-SR8 SFP Switch Fiber Module

QSFP-DD SFP Switch Fiber Module



This product is a parallel 400Gb/s Quad Small Form Factor Pluggable--double density (QSFP-DD) optical module. It provides increased port density and total system cost savings. The QSFP-DD full- duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.

The central wavelengths of all the 8 parallel lanes are 850nm. It contains an optical MPO-16 connector for the optical interface and a 60-pin connector for the electrical interface. Host FEC is required to support up to 70m OM3 multi-mode fiber transmission.



Parameters

Fiber Type Multi-mode OM3 OM4
Connector MPO-16
Lasers and TIA VCSEL PIN
Tx Power -6.5 to 4 dBm
Rx Sensitivity -7.9 to 4 dBm
Extinction Ratio 3 dB
Power Consumption 12 W
Single Power Supply 3.3 V



PRODUCT FEATURES

  •  QSFP-DD MSA compliant
  •  8 parallel lanes on 850nm center wavelength
  •  Compliant to IEEE 802.3bs Specification
  •  Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC
  •  Operating case temperature: 0 to 70oC
  •  8x53.125Gb/s electrical interface (400GAUI-8)
  •  Data Rate 53.125Gbps (PAM4) per channel.
  •  Maximum power consumption 12W
  •  MPO-16 connector
  •  RoHS compliant



APPLICATIONS

  •  Data Center Interconnect
  •  400G Ethernet
  •  Infiniband interconnects
  •  Enterprise networking



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)



Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
