Product Details:
|
| Center Wavelength: | 1310nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Transmission Distance: | 500m | Weight: | 0.06KG Per Piece |
| Protocol: | QSFP28 MSA SFF-8665 Compliance | Warranty: | 1 Year |
| Pull Color: | Green | ||
| Highlight: | 100G QSFP28 Optical Transceiver,DR1+ PAM4 qsfp28 100g Transceiver,TR-ZC13T-NW5 Innolight |
||
TR-ZC13T-NW5 Innolight 100G QSFP28 Module DR1+ PAM4 500M Single Lambda Optical Transceiver
Innolight's QSFP28 100G DR1+ Optical Transceiver's Overview
This 100G QSFP28 transceiver is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. This product converts the 4-channel of 100Gbps aggregated NRZ electrical input data into one channel of 50Gbaud PAM4 optical signal (light) on 1310nm center wavelength through a DSP based gearbox, by a driven cooled Electro-absorption Modulated DFB Laser (EML). The light propagates out of the transmitter into an SMF fiber. The receiver module accepts the 50Gbaud PAM4 optical signal input, and converts it into a 50Gbaud PAM4 electrical signal via a linear amplifier. And then convert the 50Gbaud PAM4 signal into 4 channels of 25Gbps NRZ signals.
Features
Applications
Parameters for the Intel QSFP28 100G Optical Transceiver:
| Fiber Type | OS2 single-mode fiber |
| Connector | LC duplex connector |
| Transmit and Receive Wavelength (nm) | 1310nm |
| Pull Tab Color | Green |
| Tx power | -2.9 to 4dBm |
| Rx sensitivity | -5.9 to 4dBm |
| Power Consumption | 4.5W |
|
Electrical interface compliant
|
IEEE 802.3bm CAUI-4 4x25G standard |
| Dimensions | (H x W x D)13.5 x 18.4 x 72.4 mm |

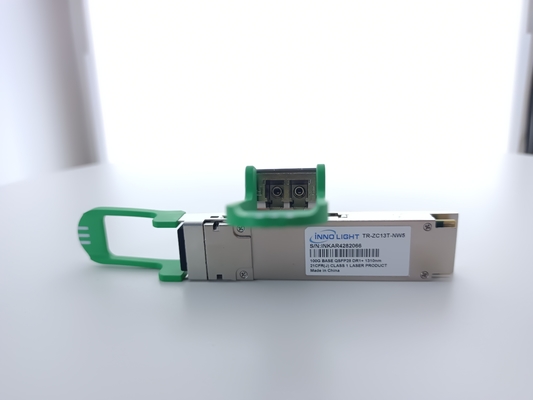

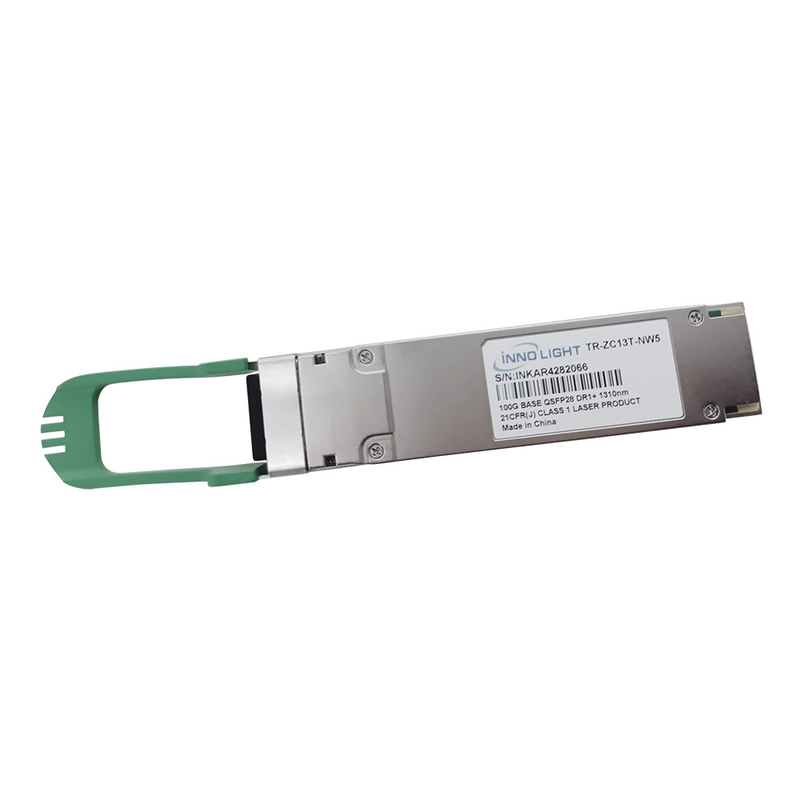

Photo for Innolight's QSFP28 100G TR-ZC13T-NW5 Transceiver
FAQ
Q1. Are your transceiver modules compatible with any brand?
A1:Yes, All the brand Topstar's SFP compatible as the following:Nortel,Juniper,Alcatel-lucent,FOUNDRY,
EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, D-Link, Feixun...etc
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock ,ready to ship. some of higher-value and specialize optics have a short lead time.
Payment term: Western union, T/T, Aliexpress escow, money gram ,cash payment
Warranty: 3 years
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
