Product Details:
|
| Chassis: | Single Chassis | Control Processor: | Redundant Control Processor Modules |
|---|---|---|---|
| Scalability: | Full-fabric Architecture Of 239 Switches | Certified Maximum: | 6,000 Active Devices Per Switch |
| Fibre Channel Blades: | Brocade FC32-48 Port Blade Provides 48 Ports Of 32 Gbps Gen 6 Fibre Channel | Performance: | Autosensing Of 4, 8, 16, And 32 Gbps Port Speeds Depending On SFPs Used. |
| ISL Trunking: | Frame-based Trunking With Up To Eight 32 Gbps Ports Per ISL Trunk | Weight: | 24.5 Kg (54 Lb) For Chassis |
| High Light: | CR32-4 Brocade X6-4 Director,Brocade X6-4 Chassis Core Routing Blade,32-Gbps Ports brocade x6 4 director |
||

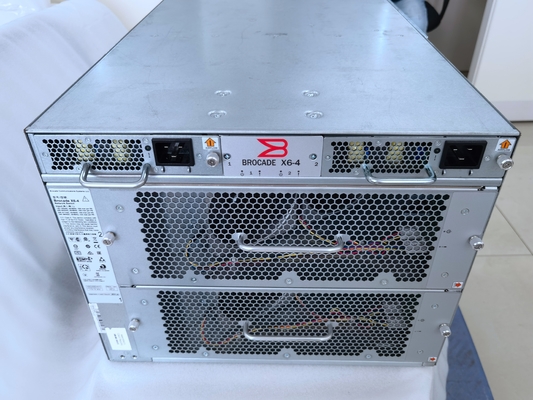

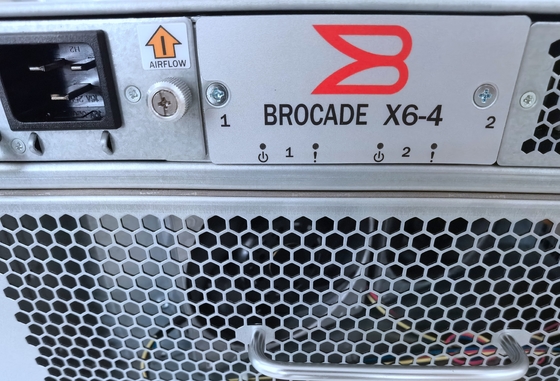

Brocade CR32-4 X6-4 Chassis Core Routing Blade Up To 192 32-Gbps Ports
Product Description:The Brocade® X6 Director with Brocade Fabric Vision™ technology combines innovative hardware, software, and
| Main features | Systems Architecture |
| Extension blades | Brocade SX6 Extension Blade provides Fibre Channel extension (16×32 Gbps Fibre Channel ports) and IP extension over IP networks (16×1/10 GbE and 2×40 GbE ports) |
| Performance |
Fibre Channel:
• 4 Gbps line speed, full duplex
• 8 Gbps line speed, full duplex
• 10 Gbps line speed, full duplex
• 16 Gbps line speed, full duplex
• 32 Gbps line speed, full duplex
|
| Slot bandwidth | 1,536 Gbps (line rate) |
| Fibre Channel ports | Brocade X6-4: Up to 192 32-Gbps ports, universal (F_Port, E_Port, EX_Port, M_Port, D_Port, SIM Port, FICON) |
| Multichassis with UltraScale ICL ports | Up to 4,608 non-blocking 32 Gbps Fibre Channel ports; UtraScale ICL ports (32 for 8-slot or 16 per 4-slot chassis, optical QSFP) connect up to nine chassis in a full mesh topology or up to 12 chassis in a core-edge topology. |
| Chassis bandwidth | Brocade X6-4: 6.1 Tbps per chassis (192 ports×32 Gbps) data rate + 2.048 Tbps UltraScale ICL bandwidth (16×128 Gbps) |
| UltraScale ICL bandwidth | Brocade X6-4: 2.048 Tbps; 16 UltraScale ICL ports provide the equivalent of 64 32 Gbps ports. Each UltraScale ICL port provides 128 Gbps bandwidth over a QSFP (32 Gbps×4) link. |
| Switch latency | Brocade FC32-48 blade at Gen 6 32 Gbps speeds: <900 ns (including FEC); any-port-to-any-port local switching and 2.7 μs blade to blade at 32 Gbps, cut-through routing |
| Switching capacity | An aggregate switching capacity of 13.5 billion frames per second (for Class 2, Class 3, and Class F frames for a 384-port chassis) |
| Extension | Supports DWDM, CWDM, and FC-SONET devices; Fibre Channel, in-flight compression (Brocade LZO) and encryption (AES-GCM-256); BB credit recovery; FCIP, IP Extension, Adaptive Rate Limiting (ARL), data compression, Fast Write, read/write Tape Pipelining, QoS |
