Product Details:
|
| Chassis: | Single Chassis | Control Processor: | Redundant Control Processor Modules |
|---|---|---|---|
| Scalability: | Full-fabric Architecture Of 239 Switches | Certified Maximum: | 6,000 Active Devices Per Switch |
| Fibre Channel Blades: | Brocade FC32-48 Port Blade Provides 48 Ports Of 32 Gbps Gen 6 Fibre Channel | Performance: | Autosensing Of 4, 8, 16, And 32 Gbps Port Speeds Depending On SFPs Used. |
| ISL Trunking: | Frame-based Trunking With Up To Eight 32 Gbps Ports Per ISL Trunk | Weight: | 35.61 Kg (78.5 Lb) For Chassis |
| High Light: | Gen6 Fibre Channel Brocade POD License,Eight Vertical Blade Slots Brocade X6-8,Brocade X6-8 Director Gen6 Fibre Channel |
||

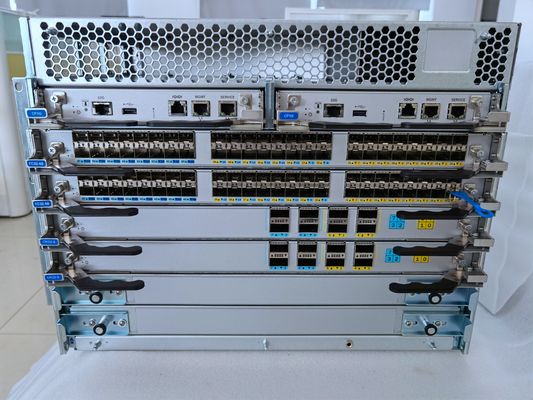

Brocade X6-8 Director With Eight Vertical Blade Slots Gen6 Fibre Channel 16U Rackmount
Product Description: GEN 6 FIBRE CHANNEL Brocade Gen 6 Fibre Channel is the purpose-built network infrastructure for mission-critical storage, delivering operational stability, break through performance, and increased business agility to accelerate data access, adapt to evolving requirements, and drive always on business operations. The Brocade X6 Director with Gen 6 Fibre Channel, Brocade Fabric Vision technology,
| Main features | Systems Architecture |
|
Extension blades
|
Brocade SX6 Extension Blade provides Fibre Channel extension (16×32 Gbps Fibre Channel ports) and IP extension over IP networks (16×1/10 GbE and 2×40 GbE ports) |
|
Performance
|
Fibre Channel:
• 4 Gbps line speed, full duplex
• 8 Gbps line speed, full duplex
• 10 Gbps line speed, full duplex
• 16 Gbps line speed, full duplex
• 32 Gbps line speed, full duplex
|
|
Slot bandwidth
|
1,536 Gbps (line rate)
|
| Fibre Channel ports | Brocade X6-8: Up to 384 32-Gbps ports, universal (E_Port, F_Port, EX_Port, M_Port, D_Port, SIM Port, FICON) |
|
Multichassis with UltraScale ICL ports
|
Up to 4,608 non-blocking 32 Gbps Fibre Channel ports; UtraScale ICL ports (32 for 8-slot or 16 per 4-slot chassis, optical QSFP) connect up to nine chassis in a full mesh topology or up to 12 chassis in a core-edge topology.
|
| Chassis bandwidth | Brocade X6-8: 12.2 Tbps per chassis (384 ports×32 Gbps) data rate + 4.096 Tbps UltraScale ICL bandwidth (32×128 Gbps) |
|
UltraScale ICL bandwidth
|
Brocade X6-8: 4.096 Tbps; 32 UltraScale ICL ports provide the equivalent of 128 32 Gbps ports. Each UltraScale ICL port provides 128 Gbps bandwidth over a QSFP (32 Gbps×4) link.
|
|
Switch latency
|
Brocade FC32-48 blade at Gen 6 32 Gbps speeds: <900 ns (including FEC); any-port-to-any-port local switching and 2.7 μs blade to blade at 32 Gbps, cut-through routing |
|
Switching capacity
|
An aggregate switching capacity of 13.5 billion frames per second (for Class 2, Class 3, and Class F frames for a 384-port chassis)
|
|
Extension
|
Supports DWDM, CWDM, and FC-SONET devices; Fibre Channel, in-flight compression (Brocade LZO) and encryption (AES-GCM-256); BB credit recovery; FCIP, IP Extension, Adaptive Rate Limiting (ARL), data compression, Fast Write, read/write Tape Pipelining, QoS
|
HIGHLIGHTS
• Enhances operational stability, maximizes application performance, and increases business agility with enterprise-class Gen 6 directors
• Accelerates application response time by up to 71 percent across 32 Gbps links
• Consolidates infrastructure with 128 Gbps Brocade UltraScale ICL connectivity for simpler, flatter, low latency fabrics
• Simplifies end-to-end management of large-scale environments by automating monitoring and diagnostics
• Automatically detects degraded application or device performance through integrated network sensors
• Extends replication over distance with a highly scalable extension solution foFibre Channel, IP, and FICON
• Simplifies configuration automation and enables integrated advanced services across the Fabric with standard REST API
• Seamlessly integrates next-generatioNVMe over Fabrics with Gen 6 Fibre Channel networks without a disruptive rip and replace
• Mitigates risk with backwardcompatibility while further protecting future investments with Gen 7-ready support
