Product Details:
|
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Supports: | Eight-port | Warranty: | 1 Year |
| Transmission Rate: | 12Gb/s | Type: | PCIe 3.0 |
| Operating Temperature: | 0°C To 55°C | Storage Temperature: | –45 °C To +105 °C |
| High Light: | LSI SAS 9300-8e Host Bus Adapter,PCI Express To 12Gb/S sas hba adapter,LSI 12Gb/S SAS Host Bus Adapter |
||

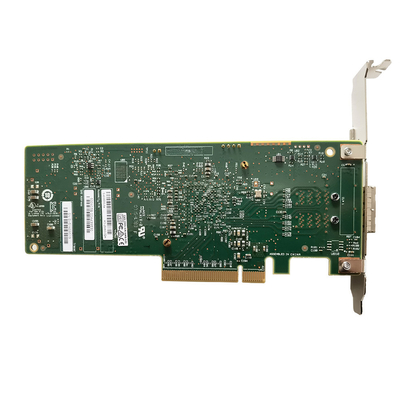

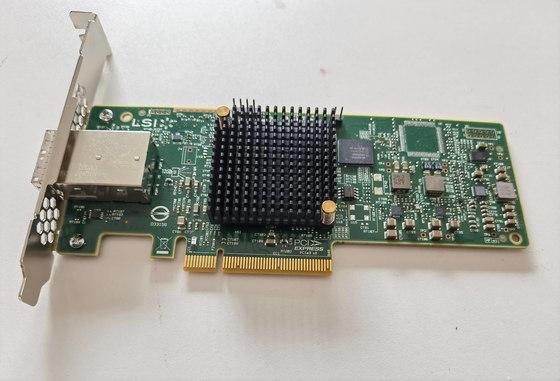

LSI SAS 9300-8e PCI Express to 12Gb/s Serial Attached SCSI (SAS) Host Bus Adapter
LSI SAS 9300-8e Adapter
Features
Characteristics
|
Memory
|
The LSI 12Gb/s SAS HBA provides one 4-M × 16-bit Flash ROM to store the firmware and the BIOS. |
|
LED
|
The LSI 12Gb/s SAS HBA Heartbeat LED, CR1, blinks green to indicate the HBA is capable of general activity. |
|
Connectors
|
PCIe Connector (EC1). The LSI 12Gb/s SAS HBA supports a x8 interface. The PCIe host interface connection is through the edge connector, EC1, which provides connections on both the top (EC1 B) and bottom (EC1 A) of the board. The signal definitions and pin numbers conform to the PCIe specification. SATA+SAS Connector (J6). The LSI 12Gb/s SAS HBA supports SATA and SAS connectors through connectors that are SFF-8644 mini-SAS HD, external connectors. |
FAQ
Q1. Are your network adapter original?
A1.Yes, all our network adapter are guaranteed 100% original!
Q2. What will you do if I found the product has any quality problem?
A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q3. How about the shipment?
A3. We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation.
