Product Details:
|
| Form-Factor: | QSFP-DD | Data Rate: | 400G |
|---|---|---|---|
| Center Wavelength: | 1310NM | Transmission Distance: | 2km |
| Temperature: | 0C~+70C | OEM Or ODM: | Support |
| Weight: | 0.06KG Per Piece | Warranty: | 3 Years |
| High Light: | QSFP-DD MSA Fiber Optic Transceiver,Fiber Optic Transceiver 400G 2km,DR4+ MPO Connector QSFP-DD MSA |
||

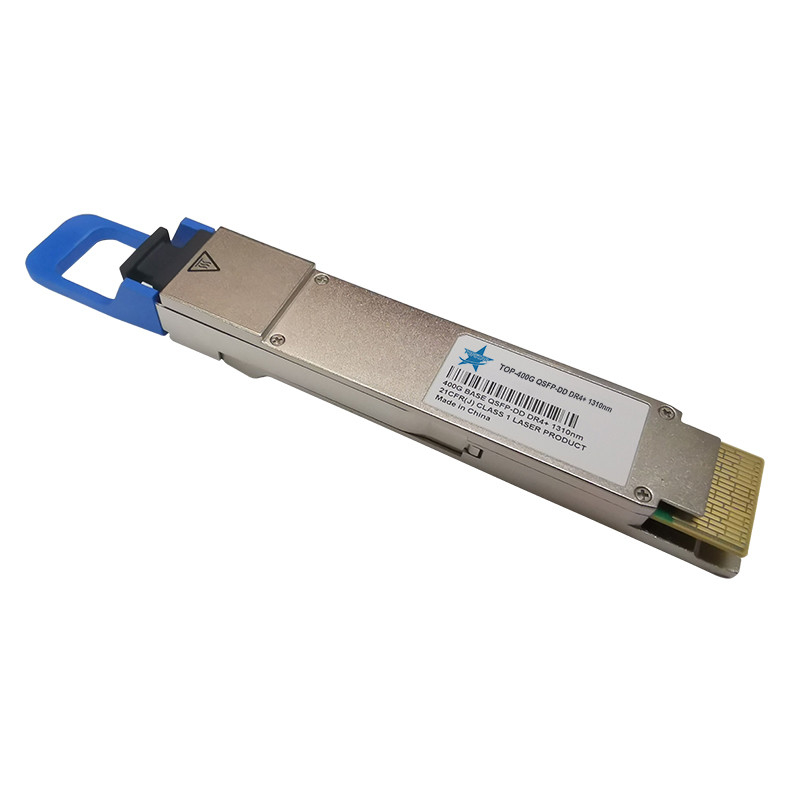

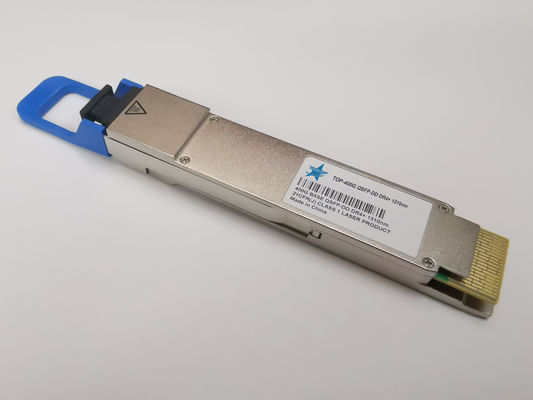

Fiber Optic Transceiver QSFP-DD 400G 1310nm 2km DR4+ MPO Connector Sfp Switch Port
Fiber Optic Transceiver Sfp Switch Port
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.
An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP-DD DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a QSFP-DD MSA-compliant edge type connector.
Parameters
| Fiber Type | SMF |
| Connector | MPO-12 |
| Lasers and TIA | EML PIN |
| Tx Power | -2.4 to 4 dBm |
| Rx Sensitivity | -6.4 to 4.5 dBm |
| Extinction Ratio | 3.5 dB |
| Power Consumption | 12 W |
| Single Power Supply | 3.3 V |
PRODUCT FEATURES
APPLICATIONS
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
