Product Details:
|
| Data Rate: | 100G | Form-Factor: | CFP2 |
|---|---|---|---|
| Center Wavelength: | LAN-WDM | Transmission Distance: | 10km |
| Temperature: | 0-70 | Weight: | 0.34g |
| Warranty: | 1 Years |

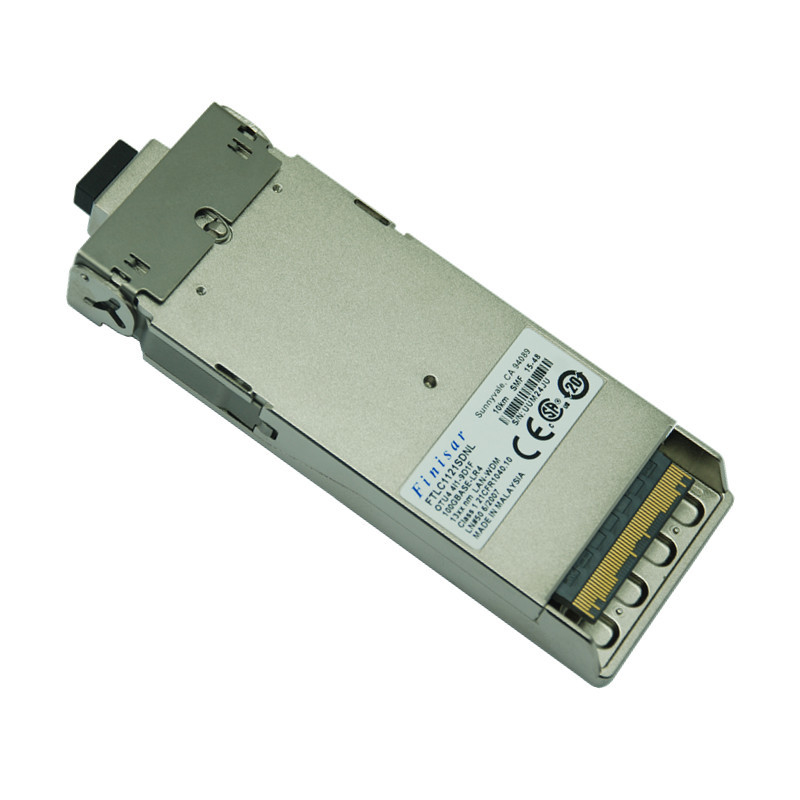

Finisar FTLC1121SDNL 100GBASE-LR4 10km CFP2 Optical Transceiver
Parameters
| Fiber Type |
100GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -10~4.5 dBm |
| Rx Sensitivity | -8.6 dBm |
| Extinction Ratio | 4 dB |
| Power Consumption | 8 W |
| Single Power Supply | 3.3 V |
Finisar’s FTLC1121SDNx 100G CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA1 and IEEE 802.3ba 100GBASE-LR42 . Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Finisar Application Note AN21185 . The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3 , and Finisar Application Note AN-20384 .
PRODUCT FEATURES
• Hot-pluggable CFP2 form factor
• Supports 103.1Gb/s aggregate bit rates
• Power dissipation < 8W
• RoHS-6 compliant (lead-free)
• Commercial case temperature range of 0°C to 70°C
• Single 3.3V power supply
• Maximum link length of 10km on Single Mode Fiber (SMF)
• 4x26Gb/s DFB-based LAN-WDM transmitter
• 4x26G electrical interface
• Duplex LC receptacles
• MDIO management interface
APPLICATIONS
FAQ
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
