Product Details:
|
| Data Rate: | 100G | Form-Factor: | QSFP28 |
|---|---|---|---|
| Center Wavelength: | 850nm | Transmission Distance: | 100m |
| Temperature: | 0-70 | Weight: | 0.27g |
| Warranty: | 1 Years | ||
| High Light: | 850NM 40M Finisar Optical Transceiver,FTLC9554REPM 100G QSFP28 SR,100G QSFP28 Finisar Optical Transceiver |
||

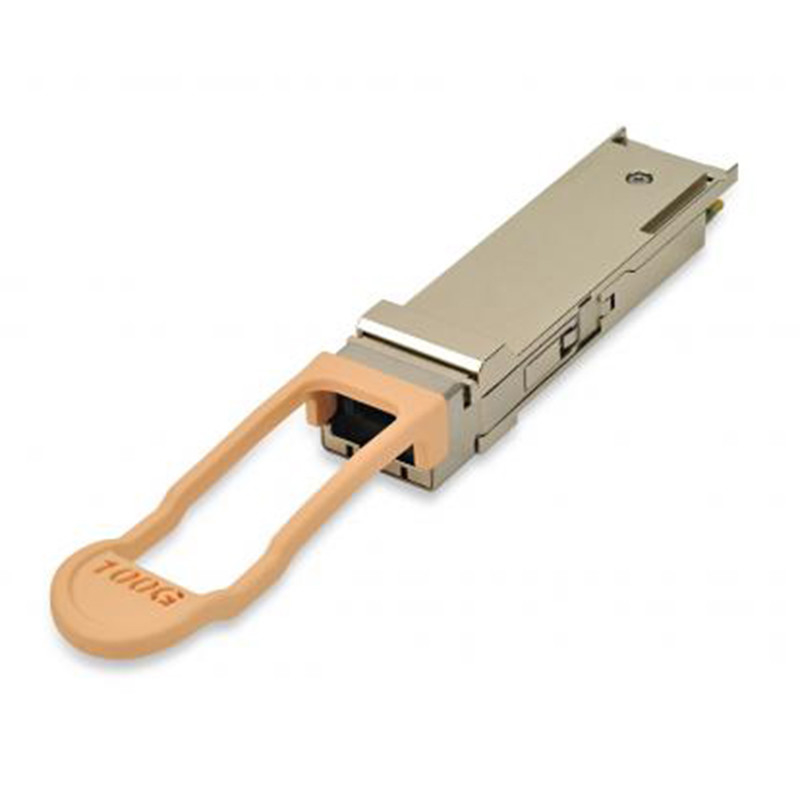

Original Finisar FTLC9554REPM 100G QSFP28 SR 850NM 40M Optical Module
Parameters
| Fiber Type |
10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -3 dBm |
| Rx Sensitivity | -9.4 dBm |
| Extinction Ratio | -8.2~-8.8 dbm |
| Power Consumption | 3.5W |
| Single Power Supply | 3.3~5 V |
The FTLC9554REPM is a parallel 100 Gbps Quad Small Form-factor Pluggable (QSFP28) optical module. It provides
increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent
transmit and receive channels, each capable of 25 Gbps operation for an aggregate data rate of 100 Gbps on 100
meters of OM4 multi-mode fiber. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the
QSFP28 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually
cannot be twisted for proper channel to channel alignment. The module operates by a single +3.3V power supply. The
product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the
QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions
including temperature, humidity and EMI interference. The module offers very high functionality and feature
integration, accessible via a two-wire serial interface
PRODUCT FEATURES
APPLICATIONS
FAQ
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
