Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module

Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module
Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module

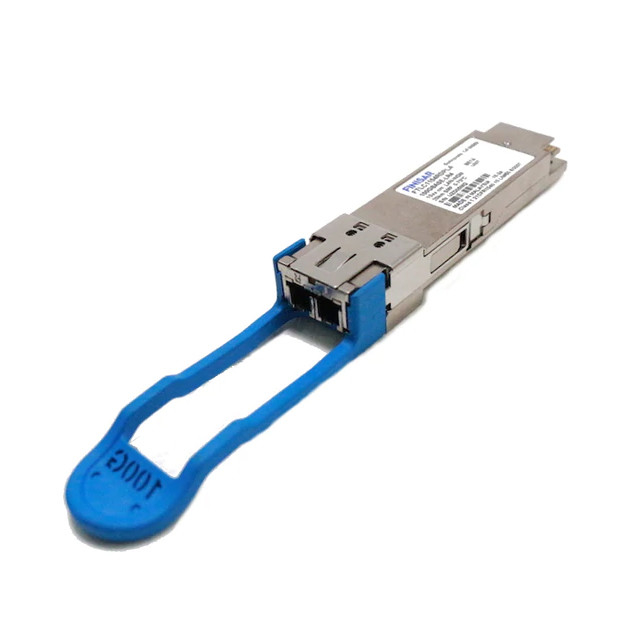

Large Image :  Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module

Product Details:
Place of Origin: Johor, Malaysia
Brand Name: Finisar
Certification: ROHS
Model Number: FTLC1151SDPL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 300$/pcs(Price is negotiable)
Packaging Details: Anti-static package, standard packing
Delivery Time: 3-4 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability: 800pcs per day

Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module

Description
Data Rate: 100G Form-Factor: QSFP28
Center Wavelength: 1310nm Transmission Distance: 10km
Temperature: 0-70 Weight: 0.27g
Warranty: 1 Years

Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module



Finisar’s FTLC1151SDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber. They are compliant with the QSFP28 MSA1 , IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1- 9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-21525 . The transceiver is RoHS-6 compliant per Directive 2011/65/EC3 and Finisar Application Note AN-20384



PRODUCT FEATURES



  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s and 112Gb/s aggregate bit rates
  • Power dissipation < 3.5W
  • RoHS-6 compliant
  • Commercial case temperature range of 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x28Gb/s DFB-based LAN-WDM transmitter
  • 4x28G retimed electrical interface
  • Duplex LC receptacles
  • I2C management interface



APPLICATIONS



  • OTN OTU4 4I1-9D1F
  • 100GBASE-LR4 100G Ethernet



Parameters

Fiber Type OTN OTU4 4I1-9D1F
Connector LC
Lasers and TIA VCSEL and PIN
Tx Power 4.5 dBm
Rx Sensitivity -8.6 dBm
Extinction Ratio  4-6.5 dB
Power Consumption 3.5 W
Single Power Supply 3.3 V




Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module 0







Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module 1



Original Finisar FTLC1151SDPL 100GBASE-LR4 10km Optical Module 2



FAQ



1. Are your Optical Transceivers original?

Yes, all our optical transceivers are guaranteed 100% original!



2. What will you do if I found the product has any quality problem?

We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!



3. What did your company do in terms of quality control?

We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.



4. What are the trade terms?

Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Aliexpress Escow, Money Gram

Warranty: 1 Year



5. Do you have compatible ones?

Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
