1.25G DWDM SFP Optical Transceiver 120km Low Power Dissipation Network Solution





 Hot-Pluggable



 Duplex LC connector



Up to 2.67Gb/s data rate



100GHz ITU Grid, C Band



DWDM COOLED DFB transmitter, PIN photo-detector



SMF links up to 80km



2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface



Power Supply :+3.3V



Power consumption<1.5W



Temperature Range: 0~ 70°C



RoHS compliant





Applications







1G Fibre channel



DWDM Networks



Fibre channel







Description

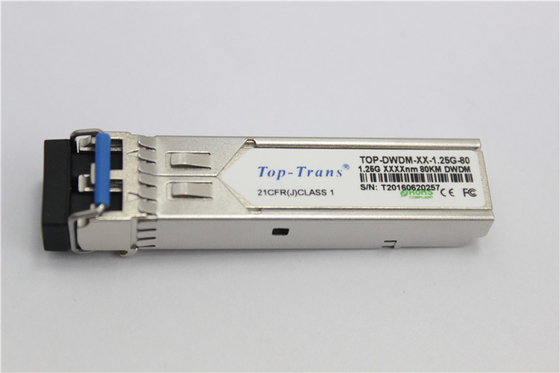

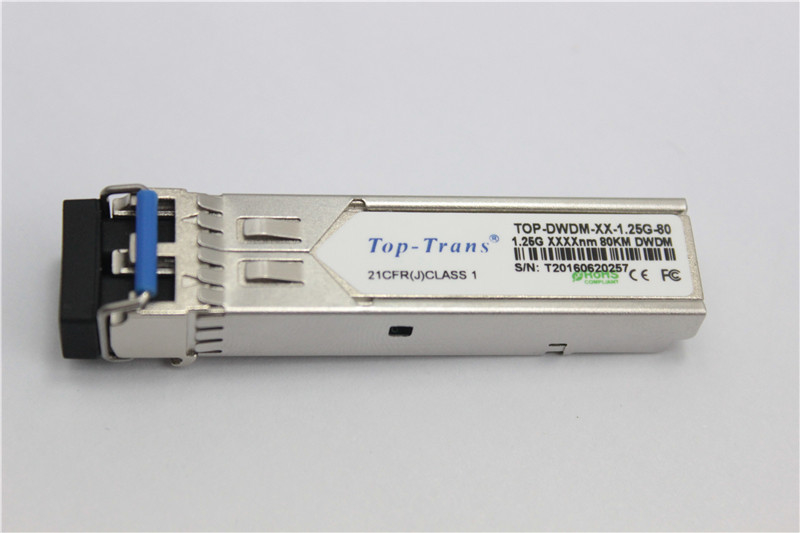

Topstar's TOP-DWDM-XX-1.25G-80 is a very compact 1.25Gb/s optical transceiver module for serial optical communication



applications at 1.25Gb/s. The TOP-DWDM-XX-1.25G-80 converts a 1.25Gb/s serial electrical data stream to 2.67Gb/s optical



output signal and a 1.25Gb/s optical input signal to 1.25Gb/s serial electrical data streams. The high speed 2.67Gb/s electrical



interface is fully compliant with SFI specification.



The high performance DWDM COOLED DFB transmitter and high sensitivity PIN receiver provide superior performance for



Ethernet applications at up to 80km links.



The SFP Module compliants with SFF-8431, SFF-8432 Digital diagnostics functions are available via a 2-wire serial interface,



as specified in SFF-8472.





The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.







Optical Module TOP-DWDM-XX-1.25G-80  Specification





Rate	1.25Gb/s
Power consumption	<1.5W
Temperature	0 to 70°C
Distance	80Km
Form Factor	SFP
Connector	LC
Extinction Ratio	8.2dB
Supply Power	3.3V
