Product Details:
|
| Data Rate: | 1.25Gb/s | Power Dissipation: | 1.05W |
|---|---|---|---|
| Connector: | RJ-45 | Temperature: | 0°C To +85°C |
| Power Supply: | 3.3V | Cable Length: | 100m |
| High Light: | 1.25G SFP Rj45 SFP Optical Transceiver,1.25G sfp transceiver 1000base t,rj45 sfp module 1000BASE-T |
||

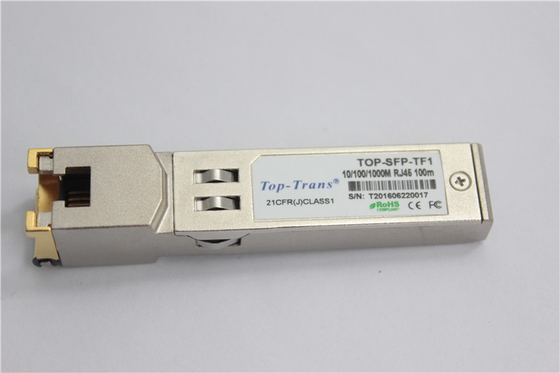

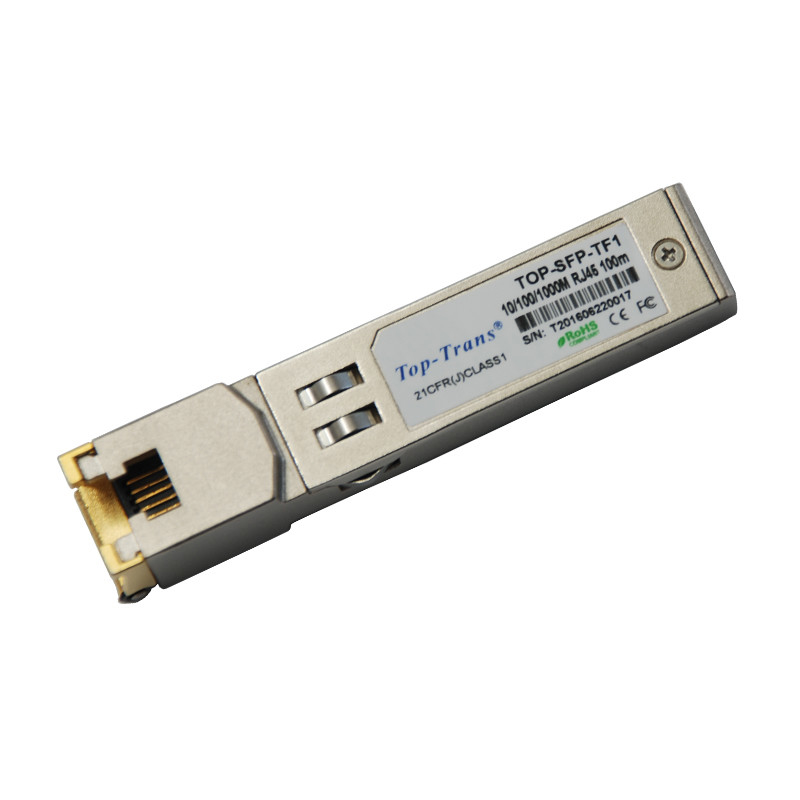

10/100/1000BASE-T Transceiver 1.25G SFP Rj45 Connector High-Speed Modules
1.25G Rj45 SFP Module Fetures:
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (0°C to +85°C )
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
10/100/1000Mbps compliant in host systems with SGMII interface
1Gigabit Ethernet over Cat 5 cable
PRODUCT DESCRIPTIONS
TOP-SFP-TF1 Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the
Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting
1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps (or
10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are
used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA,
which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be
accessed via 2wire serial bus at address ACh.
RJ45 Dual Fiber Sfp Module Specification
| Fiber Type | SMF |
|
Conector |
RJ-45 |
|
Operating Temperature |
0°C to +85°C |
|
Application |
1.25Gigabit Ethernet |
|
Rate |
1.25G |
|
Power Supply Voltage |
3.3V |
|
Cable Length |
100m |
| Certificate | ROHS |
