OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network
OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

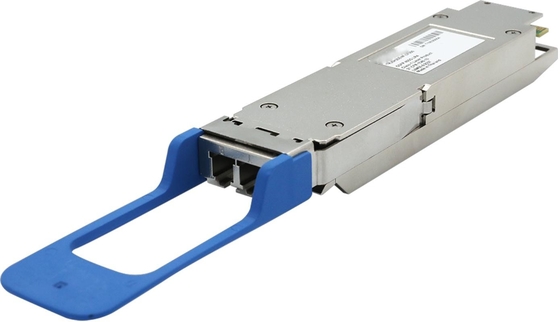

Large Image :  OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TOSFP-400G-LR4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per Day

OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

Description
Form-Factor: TOSFP-400G-LR4 Data Rate: 400G
Center Wavelength: CWDM4 Transmission Distance: 10km
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.06KG Per Piece Warranty: 3 Years
Highlight:

LR4 Fiber Optic Transceivers OSFP 400G

,

1310NM 10KM OSFP 400G

,

1310NM 10KM LC Fiber Optic Transceivers

OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

Fiber Optic Transceivers Enterprise Network of TOSFP-400G-LR4



400GBASE-LR4 OSFP Transceiver for Single-mode data transmissions with 400G in optical fiber networks. Supports Ethernet, Fibre Channel or SONET/SDH applications in switches, routers, storage systems and other related hardware. TOPSTAR 400GBASE-LR4 OSFP Transceivers will be delivered with Digital Monitoring (DDM / DOM) function (for detailed information on the power supply, the laser bias current, laser output power, the laser input power and temperature) and can have different temperature ranges.



Parameters of TOSFP-400G-LR4

Fiber Type SMF
Connector LC
Tx EML CWDM
Rx Pin
Power Consumption (W) 12W
TX_Min (dBm) -1.4dBm
TX_Max (dBm) 4.5 dBm
Single Power Supply 3.3 V



PRODUCT FEATURES of TOSFP-400G-LR4

  •  400 Gigabit Ethernet (425 Gbit/s) Transceiver
  •  Aggregate data rate of 425 Gbit/s
  •  Optical Interface: To be Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-LR4
  •  Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8
  •  Reach: Up to 6 km (IEEE)/10km (MSA) over duplex single mode fiber
  •  Form Factor: Compliant to OSFP MSA hardware specification
  •  Optical Transmitter: CWDM EA-DFB
  •  Optical Receiver: PIN photodetector
  •  Power consumption: 12 W max
  •  Operating case temperature: 0C to 70C
  •  Hot Z-Pluggable to 60-pad OSFP electrical connector
  •  Latching mechanism: Pull tab
  •  Management Interface: Two-wire common management interface
  •  Environment: RoHS10 (2011/65/EU + 2015/863) compliant



Application of TOSFP-400G-LR4

  •  For data center, enterprise, and telecom applications



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)



Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
