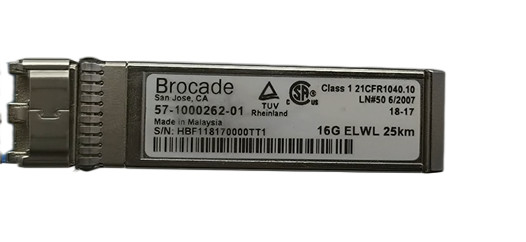

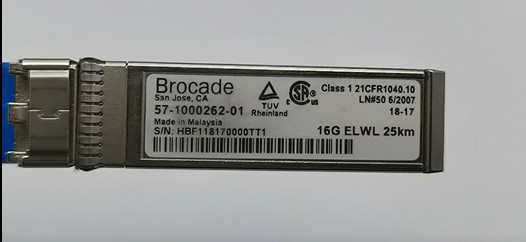

Brocade Original Transceiver 57-1000262-01 XBR-000258 16G FC SFP+ ELWL 25KM

Description of 57-1000262-01

Today’s enterprise data centers are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to meet the increasing demands of the business. As speed and performance needs increase, optical transceivers have become an integral part of overall system design.

The Brocade 16G Long Wavelength (ELWL) 25 km optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade director and switch products. Brocade ELWL SFPs extend native Fibre Channel connectivity over distance, enabling high-performance disaster recovery and business continuity solutions. Together with Brocade switching products, they provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

The Brocade 16G ELWL 25 km SFPs are hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support high-speed serial links over single-mode optical fiber. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-5) for LC duplex transceivers.

Key Features of 57-1000262-01

• 1310-nm DFB laser

• FC-PI-5 compliance for 14.025/8.5/4.25Gb/s operation

• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of:

– Transmitted average optical power

– Received average optical power

– Laser bias current

– Temperature

– Supply voltage

• Industry-standard LC duplex connector

• 25 km link lengths at 14.025Gb/s on 9-µm single-mode fiber

• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe

• Compliance with the Restriction on Hazardous Substances (RoHS) directive

• Provides high system reliability through a rigorous qualification and certification process. •

• Enables Brocade switch and director platforms with the highest performance to support business continuity and disaster recovery.

• Eliminates issues related to SFP incompatibility, reducing downtime and support costs.

• Extends Fibre Channel connectivity over distance.

Protocol of 57-1000262-01

• 16G Fiber Channel​

​

Parameters of 57-1000262-01

​​

FAQ

• Is this genuine Brocade Original Transceiver?

Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

• Does your SFP provide a quality warranty?

​

For brocade SFP, we offer a 1-year warranty.

• Can you send this SFP module to my place? and how long does it take?

​
Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

The express logistic generally takes 5-12 days to global.

​​

• Do you have regular stock of this Brocade transceiver?

​

Yes, we have regular stock of thousands of pcs, ready for a big volume order
