Product Details:
|
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Type: | Wireless | Kind: | Internal |
| Transmission Rate: | 10Gb | Interface Type: | PCI Express |
| Storage Temperature: | -40 °C To 70 °C | Operating Temperature: | 0 °C To 55 °C |
| Product Name: | X520-DA2 | ||
| Highlight: | X520-DA2 Converged Network Adapter Card,2 Port 10GB converged ethernet adapter,2 Port 10GB Converged Network Adapter |
||

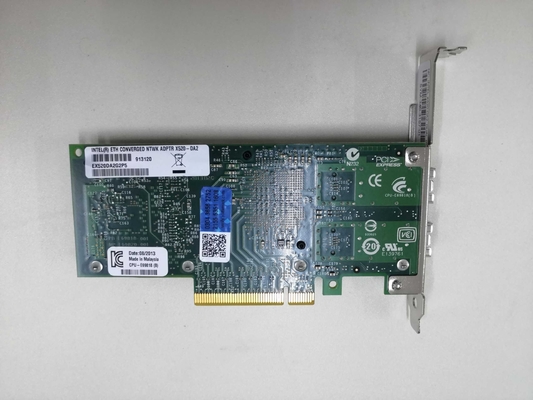

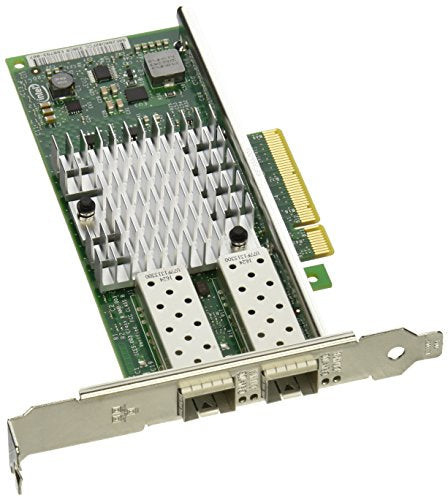

X520-DA2 2-Port 10GB SFP+ Ethernet Converged Network Adapter Card
X520-DA2 2-Port 10GB Adapter
The Intel® Ethernet Converged Network Adapter X520 Series is known for its high performance, low latency, reliability, and flexibility.
The addition of the Intel® Ethernet Server Adapter X520 Series for Open Compute Project (OCP) to the family delivers the X520 capabilities in an Open Compute Project (OCP) form factor.
The Intel® Ethernet Server Adapter X520 Series for Open Compute Project (OCP) delivers a proven, reliable solution for de- ployments of Ethernet for high bandwidth, low cost, 10GbE network connections.
Increased I/O performance with Intel® Data Direct I/O Technology (Intel® DDIO) and support for intelligent offloads make this adapter a perfect match for scaling performance on Intel® Xeon® processor E5/ E7 based servers.
Features of X520-DA2
| Features | Benefits |
| GENERAL | |
| Intel® 82599 10 Gigabit Ethernet Controller | Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors. |
| SFP+ Connectivity | Intel® Ethernet Server Adapter X520 Series for OCP with SFP+ connections support 10GBASE-SR, 10GBASE-LR and SFP+ Copper Direct Attach physical media. |
| OCP Form Factor | • Supports the OCP form factor for Server specifications revision 2 |
| iSCSI Remote Boot v3.0 |
• Enables system boot-up via iSCSI • Provides additional network management capability |
| RoHS-compliant | • Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials |
| Time Sync (IEEE 1588*, 802.1as) | • Enables networked Ethernet equipment to synchronize internal clocks according to a network mas- ter clock; endpoint can then acquire an accurate estimate of the master time by compensating for link latency. |
| Low Halogen | • Leadership in an environmentally friendly ecosystem |
| SMBus or NC-SI enabled | • Provides out of band (OOB) network access |
Technical Features Of X520-DA2
| Technical Features | |
| Data rate supported per port |
• Optical: 1 GbE/10 Gb • Direct Attach: 10 GbE |
| Bus type | PCI Express 2.0 (5.0 GT/s) |
| Interrupt levels | INTA, MSI, MSI-X |
| Hardware certifications | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Controller-processor | Intel® 82599 10 Gigabit Ethernet Controller |
|
Dual Port 10GBASE-SR 10GBASE-LR Direct Attached |
Maximum: 14.4W* Typical: 4.8W** Maximum: 14.4W* Typical: 4.8W** Maximum: 7.4W* Typical: 4.1 W** |
| Operating temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Air Flow | Minimum of 100 LFM required |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Storage humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
| LED Indicators |
LINK (solid) and ACTIVITY (blinking) LINK SPEED (green=10 Gbps; yellow=1 Gbps) |
| Physical Dimensions Operating System (NOS) Support | Standard OCP Form Factor |
FAQ of X520-DA2
Q1. Are your network adapter original?
A1.Yes, all our network adapter are guaranteed 100% original!
Q2. What will you do if I found the product has any quality problem?
A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q3. How about the shipment?
A3. We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation.
