Product Details:
|
| Moder Number: | XBR-000198 XBR-000199 57-0000089-01 | Rate: | 16G |
|---|---|---|---|
| Diagnostic: | Yes | Disance: | 25Km |
| Wavelength: | 1295 Nm To 1325 Nm | RIN: | −130 DB/Hz Max |
| Power Dissipation: | 1.08W | Temperature: | −40°C To 85°C |
| Optical Return Loss: | -12 DB Max | Certificate: | ROHS |
| Product Name: | 57-0000089-01 Optical Module | ||
| Highlight: | Brocade 57-0000089-01 16GB,LWL Transceiver Duplex LC,57-0000089-01 16GB LWL Transceiver |
||
Brocade 57-0000089-01 16GB LWL LC Duplex Transceiver Module for G610 Switch
Product 57-0000089-01 highlights include:
• 1310-nm DFB laser
• FC-PI-5 compliance for 14.025/8.5/4.25Gb/s operation
• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of:
– Transmitted average optical power – Received average optical power – Laser bias current – Temperature – Supply voltage
• Industry-standard LC duplex connector
• 10-km link lengths at 14.025Gb/s on 9-µm single-mode fiber
• IEC 60825-1 Class 1/CDRH Class 1 laser, which is eye-safe
• Compliance with the Restriction on Hazardous Substances (RoHS) directive

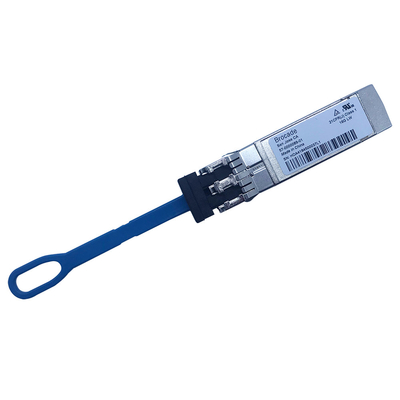

Imga of 57-0000089-01
FAQ OF 57-0000089-01
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q4. What are the trade terms?
A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
Q5. Do you have compatible ones?
A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
